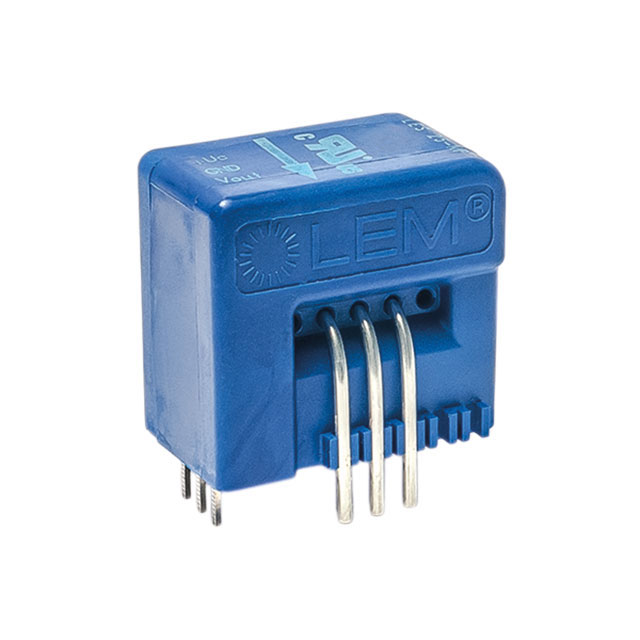

LES 25-NP
SENSOR CURRENT HALL 25A UNIPOLARManufacturer: LEM USA Inc.
Categories: Current Sensors
Quality Control: Learn More
LEM USA Inc. LES series LES-25-NP is a closed-loop Hall effect current sensor designed for precise bidirectional AC/DC current measurement up to 25A. Featuring a ratiometric voltage output, this unipolar sensor offers excellent linearity of ±0.1% and accuracy of ±2.25%. Its high frequency response of 300kHz and a rapid 400ns response time make it suitable for demanding applications. Operating within a supply voltage range of 4.75V to 5.25V with a maximum supply current of 21.3mA, the LES-25-NP is engineered for reliability in industrial automation, power supplies, and electric vehicle charging systems. The through-hole mounting module package ensures straightforward integration into existing designs.
Additional Information
Series: LESRoHS Status: Request inventory verificationManufacturer Lead Time: 48 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | 25mV/A |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | 300kHz |
| Accuracy | ±2.25% |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Response Time | 400ns |
| Sensor Type | Hall Effect, Closed Loop |
| Linearity | ±0.1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 21.3mA |
| Current - Sensing | 25A |
| Supplier Device Package | - |
| Number of Channels | 1 |
