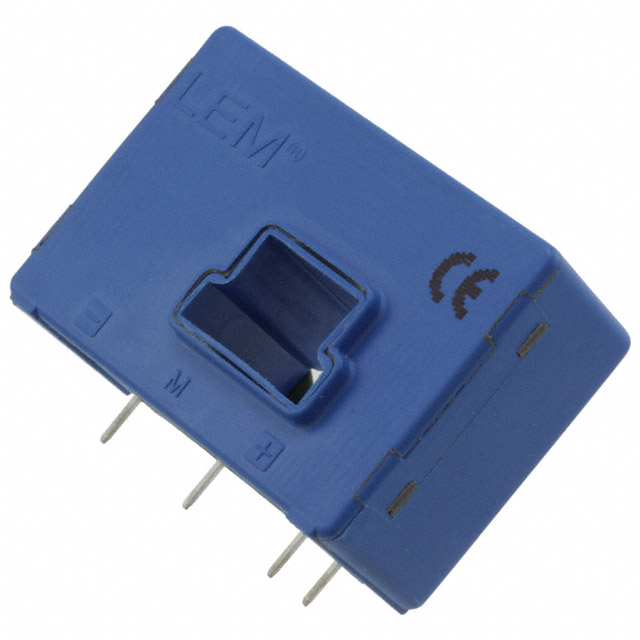

LA 125-P/SP4
SENSOR CURRENT HALL 125A AC/DCManufacturer: LEM USA Inc.
Categories: Current Sensors
Quality Control: Learn More
Current Sensor 125A 1 Channel Hall Effect, Closed Loop Bidirectional Module, Single Pass Through
Additional Information
Series: LARoHS Status: Request inventory verificationManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Through Hole |
| Output | Ratiometric, Current |
| Frequency | DC ~ 150kHz |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | ±12V ~ 15V |
| Response Time | 0.5µs |
| Sensor Type | Hall Effect, Closed Loop |
| Linearity | ±0.1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 10mA |
| Current - Sensing | 125A |
| Supplier Device Package | - |
| Number of Channels | 1 |
