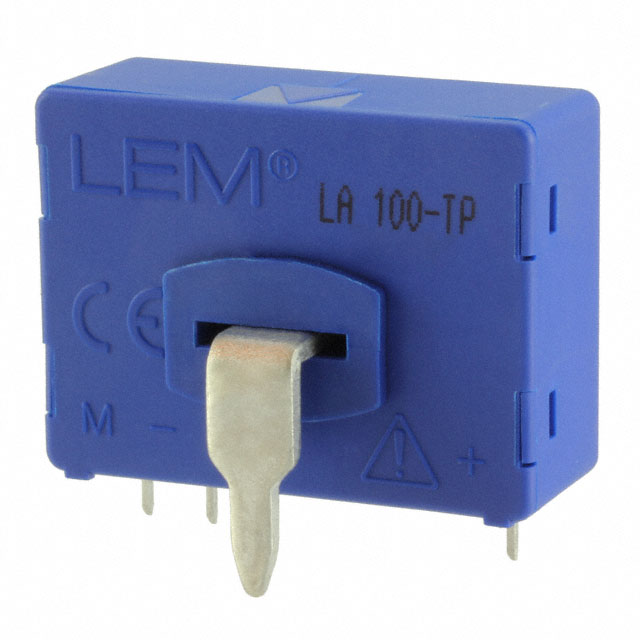

LA 100-TP
SENSOR CURRENT HALL 100A AC/DCManufacturer: LEM USA Inc.
Categories: Current Sensors
Quality Control: Learn More
Current Sensor 100A 1 Channel Hall Effect, Closed Loop Bidirectional Module
Additional Information
Series: LARoHS Status: Request inventory verificationManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Through Hole |
| Output | Ratiometric, Current |
| Frequency | DC ~ 200kHz |
| Accuracy | ±0.45% |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | ±12V ~ 15V |
| Response Time | 1µs |
| Sensor Type | Hall Effect, Closed Loop |
| Linearity | ±0.15% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 10mA |
| Current - Sensing | 100A |
| Supplier Device Package | - |
| Number of Channels | 1 |
