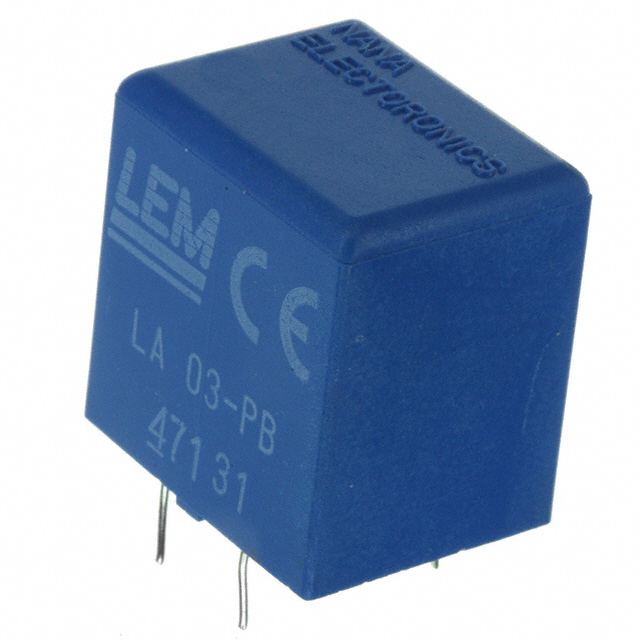

LA 03-PB
SENSOR CURRENT HALL 3A AC/DCManufacturer: LEM USA Inc.
Categories: Current Sensors
Quality Control: Learn More
The LEM USA Inc. LA Series current sensor, part number LA-03-PB, is a 3A Hall effect, closed-loop bidirectional module designed for AC/DC current measurement. This single-channel device offers ±1.5% accuracy and ±1% linearity, with a frequency response from DC up to 150kHz. It operates with a supply voltage range of ±15V and a maximum supply current of 22.5mA. The output signal is ratiometric and voltage-based, with a fast 3µs response time. Mounting is facilitated via through-hole technology. Applications for this component include industrial automation, power supplies, and renewable energy systems.
Additional Information
Series: LARoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 150kHz |
| Accuracy | ±1.5% |
| Operating Temperature | -10°C ~ 80°C |
| Voltage - Supply | ±15V |
| Response Time | 3µs |
| Sensor Type | Hall Effect, Closed Loop |
| Linearity | ±1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 22.5mA |
| Current - Sensing | 3A |
| Supplier Device Package | - |
| Number of Channels | 1 |
