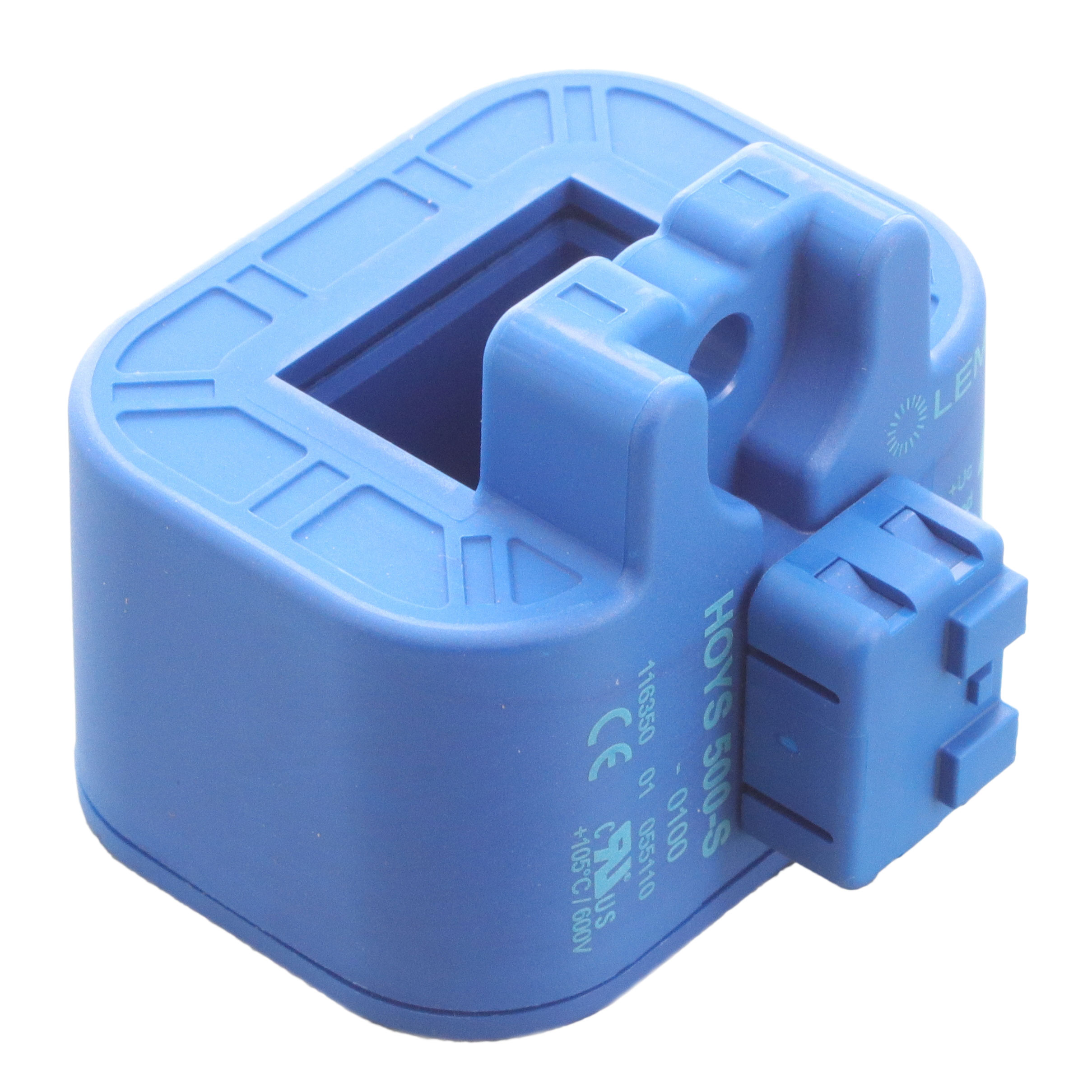

HOYS 500-S-0100
500A OPEN LOOP BUS BAR MOUNTManufacturer: LEM USA Inc.
Categories: Current Sensors
Quality Control: Learn More
Current Sensor 500A 1 Channel Hall Effect, Open Loop Bidirectional Module, Single Pass Through
Additional Information
Series: HOYS-SRoHS Status: Request inventory verificationManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | 1.6mV/A |
| Mounting Type | Chassis Mount |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 180kHz |
| Accuracy | ±1% |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | 3µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±0.5% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 25mA |
| Current - Sensing | 500A |
| Number of Channels | 1 |
Request a Quote
Clients Also Buy
HOYS 100-S-0100
100 A OPEN LOOP BUS BAR MOUNT

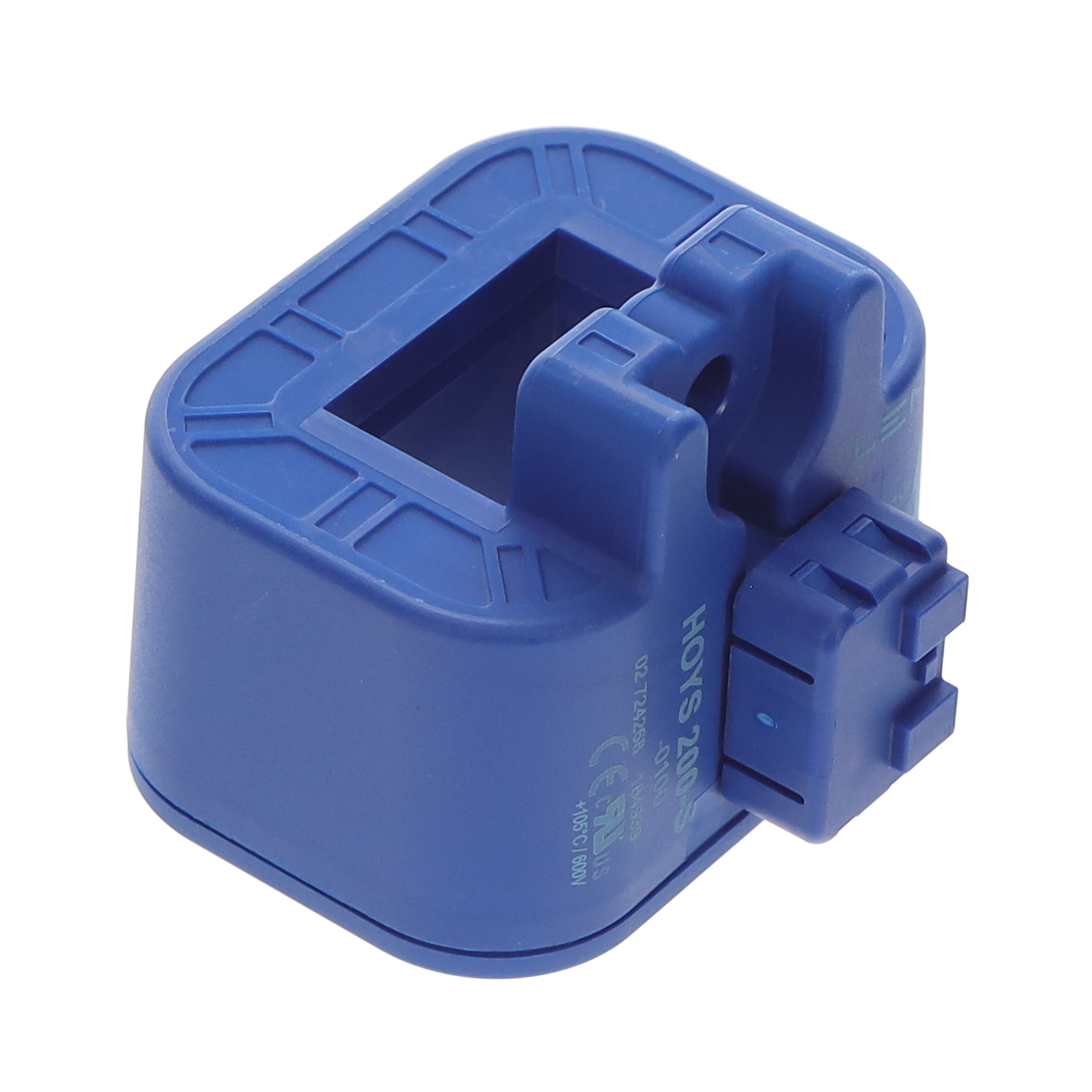

HOYS 200-S-0100
