HO 120-P/SP33-1106
SENSOR CURRENT HALL AC/DCManufacturer: LEM USA Inc.
Categories: Current Sensors
Quality Control: Learn More
The LEM USA Inc. HO-P/SP33 series HO-120-P-SP33-1106 is a single-channel Hall effect current sensor designed for AC/DC measurement up to 120A. This through-hole mount module offers ±1% accuracy and ±0.5% linearity, ensuring precise current monitoring. Featuring a ratiometric voltage output, it operates from a supply voltage range of 3.14V to 3.46V with a maximum supply current of 25mA. The sensor boasts a bandwidth of 100kHz and a fast response time of 3.5µs, making it suitable for demanding applications. Its sensitivity is rated at 7.67mV/A. This component is commonly employed in industrial automation, power supplies, and renewable energy systems.
Additional Information
Series: HO-P/SP33RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | - |
| Sensitivity | 7.67mV/A |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | 100kHz |
| Accuracy | ±1% |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 3.14V ~ 3.46V |
| Response Time | 3.5µs |
| Sensor Type | Hall Effect |
| Linearity | ±0.5% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 25mA |
| Current - Sensing | 120A |
| Number of Channels | 1 |
Request a Quote
Clients Also Buy

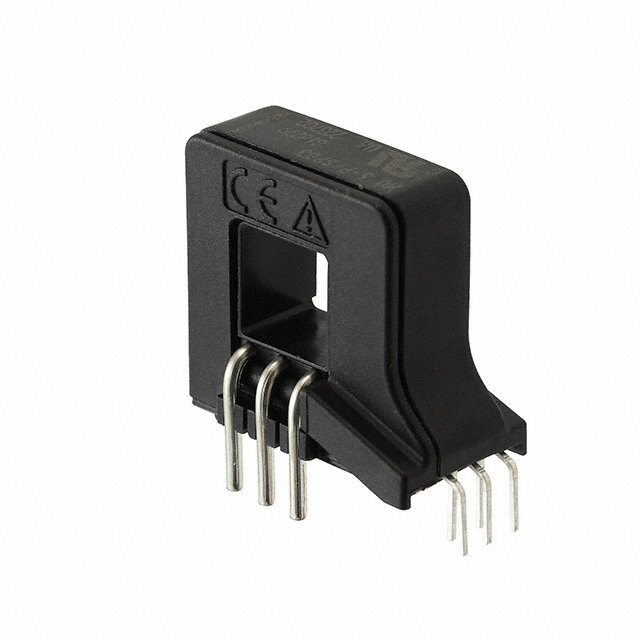

HO 10-P/SP33
