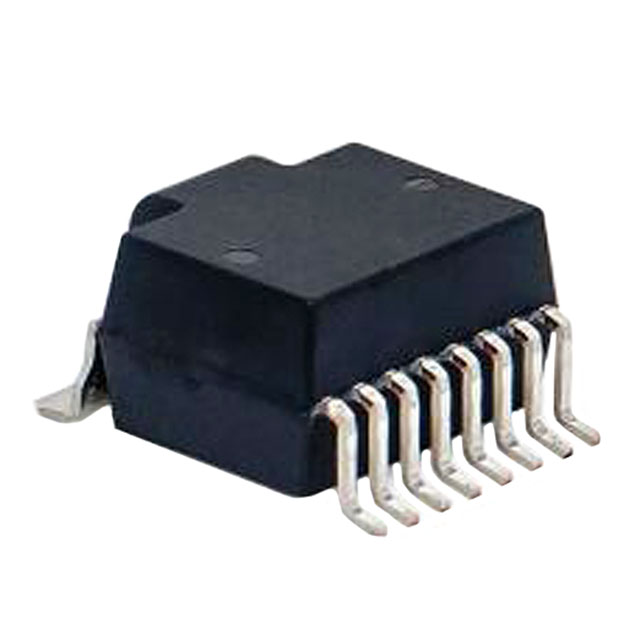

HMSR 15-SMS
SURFACT MT, 15A SENSOR WITH HIGHManufacturer: LEM USA Inc.
Categories: Current Sensors
Quality Control: Learn More
Current Sensor 15A 1 Channel Hall Effect, Open Loop Bidirectional 16-PowerSOIC (0.295"", 7.50mm Width), 10 Leads
Additional Information
Series: HMSRRoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-PowerSOIC (0.295"", 7.50mm Width), 10 Leads |
| Polarization | Bidirectional |
| Sensitivity | 53.33mV/A |
| Mounting Type | Surface Mount |
| Output | Ratiometric, Voltage |
| Frequency | 300kHz |
| Accuracy | - |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | - |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±0.5% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 26mA |
| Current - Sensing | 15A |
| Number of Channels | 1 |
