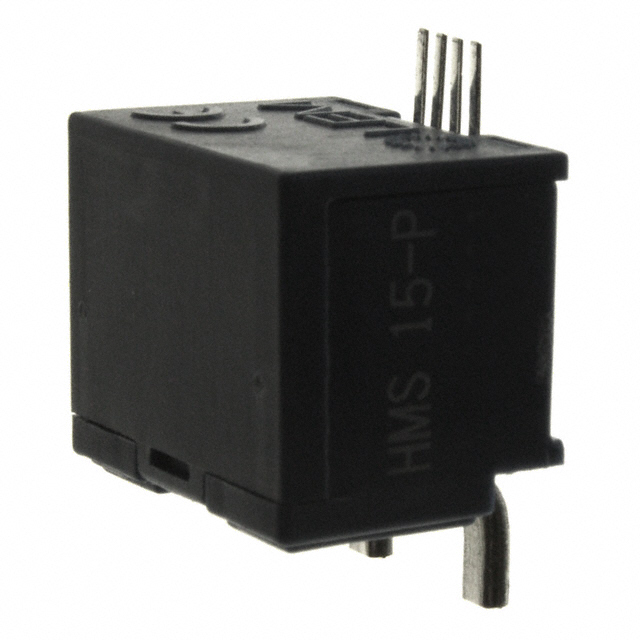

HMS 15-P
SENSOR CURRENT HALL 15A AC/DCManufacturer: LEM USA Inc.
Categories: Current Sensors
Quality Control: Learn More
LEM USA Inc. HMS Series HMS-15-P Hall Effect Current Sensor Module. This open-loop, bidirectional Hall effect sensor accurately measures AC/DC currents up to 15A with ±1% typical accuracy and ±0.5% linearity. Operating across a wide frequency range from DC to 50kHz, the HMS-15-P offers a ratiometric voltage output and a fast 5µs response time. Designed for surface mounting in a module package, it operates from a single 5V supply with a maximum current draw of 19mA. The device is rated for an operating temperature range of -40°C to 85°C. This component is commonly utilized in industrial automation, power supplies, and motor control applications. Supplied in Tape & Reel (TR) packaging.
Additional Information
Series: HMSRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Surface Mount |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 50kHz |
| Accuracy | ±1% |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 5V |
| Response Time | 5µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±0.5% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 19mA |
| Current - Sensing | 15A |
| Supplier Device Package | - |
| Number of Channels | 1 |
Request a Quote
Clients Also Buy

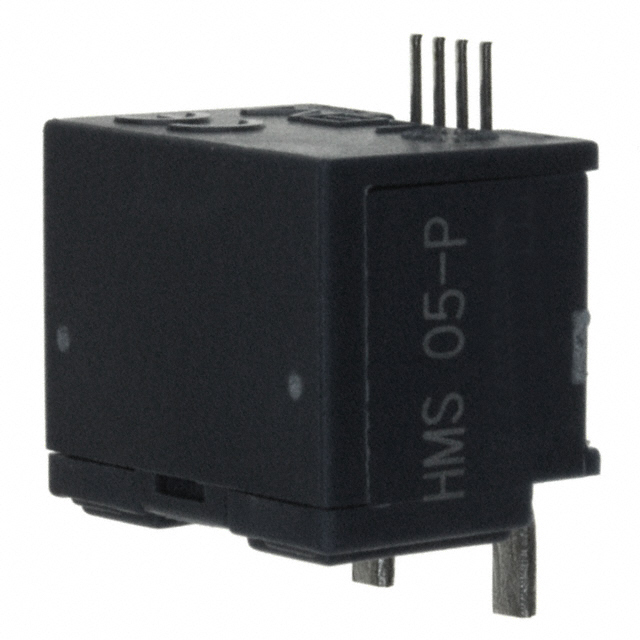

HMS 05-P
SENSOR CURRENT HALL 5A AC/DC

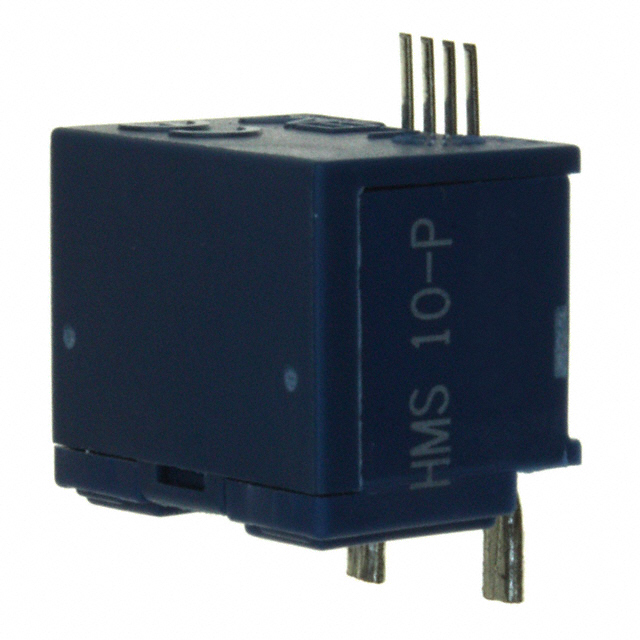

HMS 10-P
SENSOR CURRENT HALL 10A AC/DC

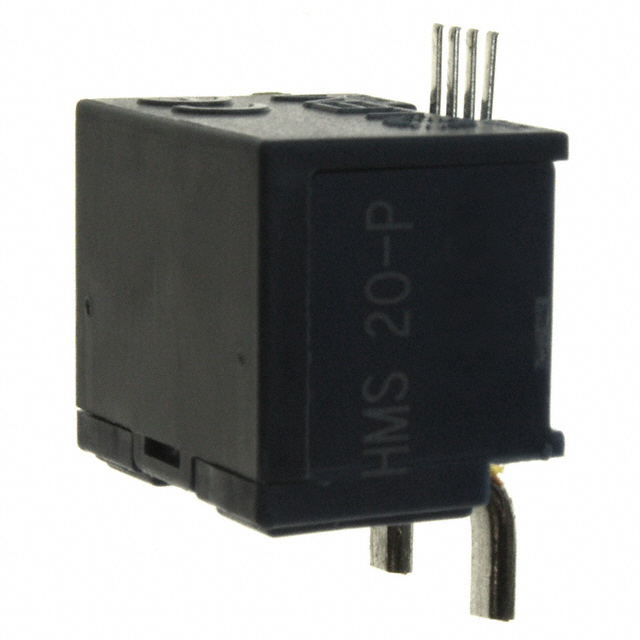

HMS 20-P
