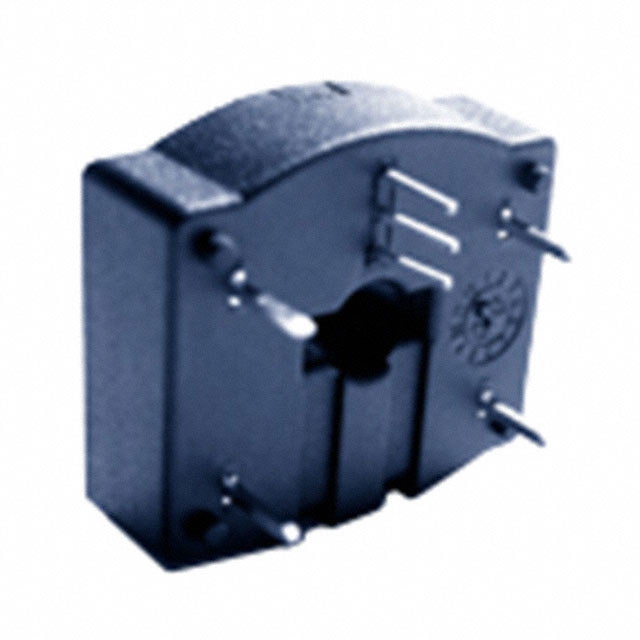

HC2F100-SN
SENSOR CURRENT HALL 100A AC/DCManufacturer: LEM USA Inc.
Categories: Current Sensors
Quality Control: Learn More
LEM USA Inc. HC2F100-SN is an open-loop, Hall effect current sensor designed for bidirectional AC/DC current measurement up to 100A. This module features a single channel and operates with a supply voltage range of 4.75V to 5.25V, drawing a maximum of 20mA. The output signal is ratiometric and voltage-based, with a sensitivity of 20mV/A and a linearity of ±0.2%. Engineered for robust performance, it offers a response time of 15µs and operates effectively within a temperature range of -40°C to 125°C. The HC2F series sensor is suitable for through-hole mounting and is commonly employed in industrial automation, power electronics, and renewable energy systems requiring precise current monitoring.
Additional Information
Series: HC2FRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | 20mV/A |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | 20kHz |
| Accuracy | - |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Response Time | 15µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±0.2% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 20mA |
| Current - Sensing | 100A |
| Supplier Device Package | - |
| Number of Channels | 1 |
