HAL 100-S/SP10
SENSOR CURRENT HALL AC/DCManufacturer: LEM USA Inc.
Categories: Current Sensors
Quality Control: Learn More

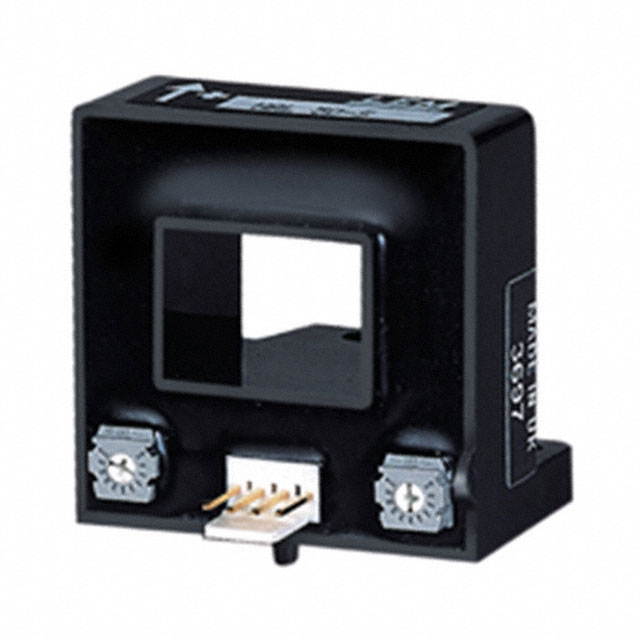

LEM USA Inc. HAL Series HAL-100-S-SP10 is a Hall effect current sensor module designed for measuring AC and DC currents up to 100A. This single-channel device features a single pass-through design for convenient integration into power systems. Key specifications include ±1% accuracy and ±0.5% linearity, ensuring precise current monitoring. The sensor operates over a wide frequency range from DC to 50kHz and requires a supply voltage between 14.25V and 15.75V with a maximum supply current of 25mA. Its output is voltage-based, and it offers a response time of 3µs. The HAL-100-S-SP10 is suitable for chassis mounting and operates within an ambient temperature range of -25°C to 85°C. This component finds application in industrial automation, power supplies, and motor control systems.
Additional Information
Series: HALRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Single Pass Through |
| Polarization | - |
| Sensitivity | - |
| Mounting Type | Chassis Mount |
| Output | Voltage |
| Frequency | DC ~ 50kHz |
| Accuracy | ±1% |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply | 14.25V ~ 15.75V |
| Response Time | 3µs |
| Sensor Type | Hall Effect |
| Linearity | ±0.5% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 25mA |
| Current - Sensing | 100A |
| Number of Channels | 1 |
