CTSR 0.3-TP/SP14
TRANSDUCERManufacturer: LEM USA Inc.
Categories: Current Sensors
Quality Control: Learn More
Current Sensor 300mA 1 Channel Closed Loop Unidirectional Module
Additional Information
Series: CTSRRoHS Status: RoHS CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | Unidirectional |
| Sensitivity | 4V/A |
| Mounting Type | Through Hole |
| Output | Voltage |
| Frequency | DC ~ 3.5kHz |
| Accuracy | - |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Response Time | 50µs |
| Sensor Type | Closed Loop |
| Linearity | ±0.5% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 21.6mA |
| Current - Sensing | 300mA |
| Supplier Device Package | - |
| Grade | - |
| Number of Channels | 1 |
| Qualification | - |
Request a Quote
Clients Also Buy
CTSR 0.3-P
SENSOR CURRENT FLUX 300MA AC/DC
CTSR 0.3-P T
SENSOR CURRENT

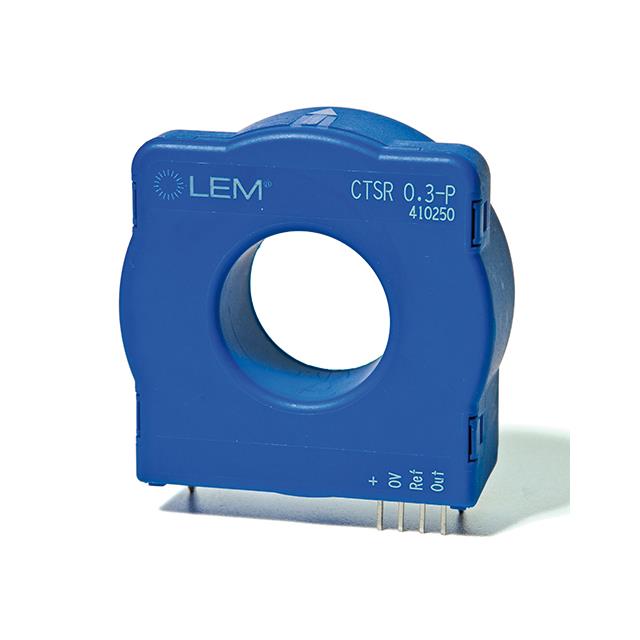

CTSR 0.3-P/SP10
