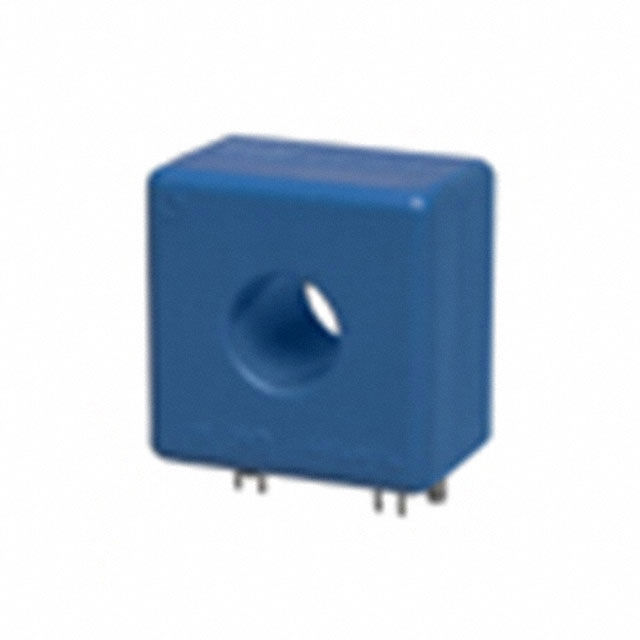

CT 0.2-P
SENSOR CURRENT FLUX 200MA AC/DCManufacturer: LEM USA Inc.
Categories: Current Sensors
Quality Control: Learn More
LEM USA Inc. CT Series CT-0-2-P is a closed-loop, flux-gate current sensor module designed for precise AC/DC current measurement. This unidirectional sensor offers a sensing range of 200mA with bidirectional polarization, providing ratiometric voltage output. Key performance specifications include ±1% accuracy and ±0.5% linearity across a frequency range from DC to 11kHz. The module operates with a ±15V supply voltage, drawing a maximum of 45mA. It is suitable for applications requiring accurate current monitoring in the industrial automation, power supply, and electric vehicle sectors. The CT-0-2-P features a through-hole mounting type and a response time of 60ms, operating within an ambient temperature range of -20°C to 85°C.
Additional Information
Series: CTRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 11kHz |
| Accuracy | ±1% |
| Operating Temperature | -20°C ~ 85°C |
| Voltage - Supply | ±15V |
| Response Time | 60ms |
| Sensor Type | Flux Gate, Closed Loop |
| Linearity | ±0.5% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 45mA |
| Current - Sensing | 200mA |
| Supplier Device Package | - |
| Number of Channels | 1 |
