F16817_LINNEA-O-B-PMMA
LENS CLR 105DEG ELLIPTICAL/OVALManufacturer: Ledil
Categories: Lenses
Quality Control: Learn More
Ledil Linnea F16817-LINNEA-O-B-PMMA is a clear, single-LED lens designed for optimal light distribution. This acrylic lens features a 105° elliptical/oval optical pattern, providing a wide and uniform beam. The lens measures 285mm x 40mm and is suitable for integration with high-quality LED sources from manufacturers such as Helvar, Nichia, Osram, Philips, Samsung, and Tridonic. Its rectangular shape with a flat top is engineered for efficient thermal management and robust mechanical integration. This component is commonly employed in applications requiring precise illumination control, including architectural lighting, retail displays, and general luminaires. The F16817-LINNEA-O-B-PMMA is supplied in tray packaging.
Additional Information
Series: LinneaRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Color | Clear |
| Mounting Type | - |
| Material | Acrylic |
| Type | Lens |
| Viewing Angle | 105° |
| Optical Pattern | Elliptical/Oval |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 285mm x 40mm |
| For Use With/Related Manufacturer | Helvar, Nichia, Osram, Philips, Samsung, Tridonic |
| Number of LEDs | 1 |
Request a Quote
Clients Also Buy
F16810_LINNEA-ZT25-B-PMMA
LENS CLEAR ASYMMETRICAL

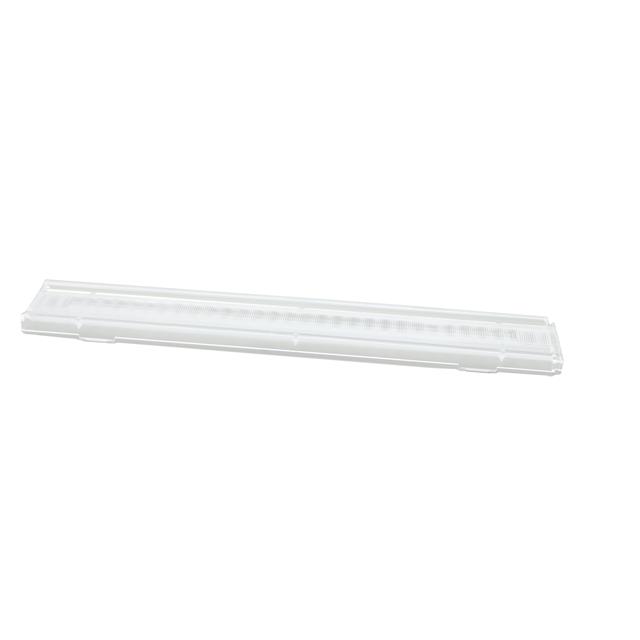

F16811_LINNEA-90-PMMA
