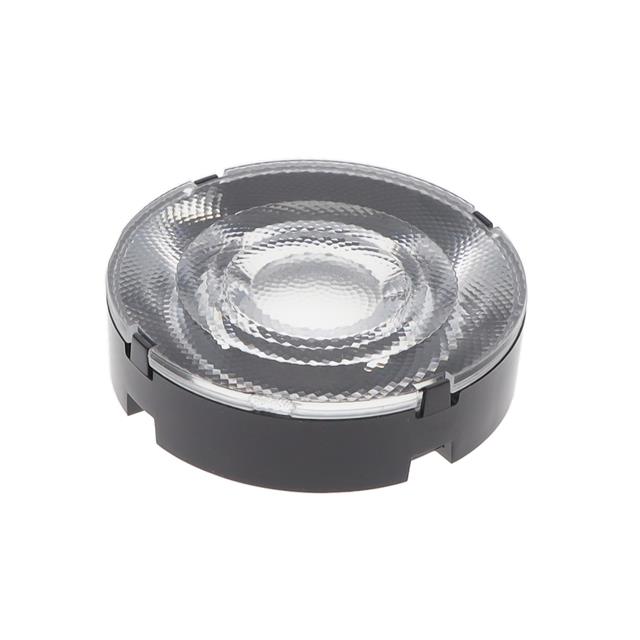

Ledil AMY series lens with holder, part number CP18644-AMY-50-RS-B. This clear acrylic lens features a snap-in mounting type and a round with flat top style. Designed for a single LED, it offers an adjustable spot optical pattern with a viewing angle range of 8° to 30°. The lens diameter is 49.9mm. This component is compatible with LED sources from Bridgelux, Citizen, and Cree. Applications include automotive lighting, architectural lighting, and general illumination systems requiring precise beam control. Packaged in trays.
Additional Information
Series: AMYRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Color | Clear |
| Mounting Type | Snap-In |
| Material | Acrylic |
| Type | Lens With Holder |
| Viewing Angle | 8° ~ 30° |
| Optical Pattern | Spot |
| Lens Transparency | - |
| Lens Style | Round with Flat Top |
| Lens Size | 49.9mm Dia |
| For Use With/Related Manufacturer | Bridgelux, Citizen, Cree |
| Number of LEDs | 1 |
