CP17783_AMY-70-M-C
LENS ASSY RND 24DEG MEDIUMManufacturer: Ledil
Categories: Lenses
Quality Control: Learn More

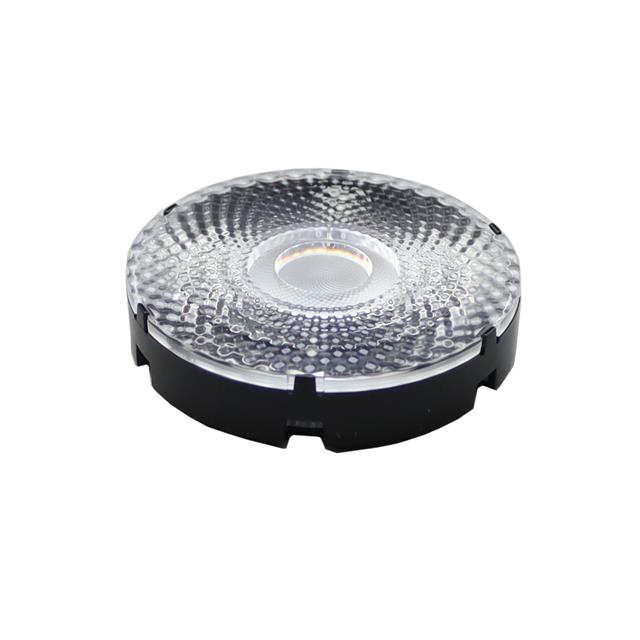

Ledil CP17783-AMY-70-M-C is a round lens assembly designed for single LED illumination with a medium optical pattern. This acrylic lens features a flat top and a 24° beam angle, providing a focused light distribution. The assembly includes a holder for secure mounting and is compatible with a wide range of high-power LED manufacturers, including Bridgelux, Citizen, Cree, Luminus, and Samsung. With a 69.9mm diameter, this component is suitable for applications in the automotive, industrial lighting, and architectural lighting sectors where precise beam control and efficient light delivery are critical. The part is supplied in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Color | - |
| Mounting Type | - |
| Material | Acrylic |
| Type | Lens With Holder |
| Viewing Angle | 24° |
| Optical Pattern | Medium |
| Lens Transparency | - |
| Lens Style | Round with Flat Top |
| Lens Size | 69.9mm Dia |
| For Use With/Related Manufacturer | Bridgelux, Citizen, Cree, Luminus, Samsung |
| Number of LEDs | 1 |
