CN17428_DAISY-4X1-WW-MATT-D
LENS 80DEG WIDE SCREW SNAP INManufacturer: Ledil
Categories: Lenses
Quality Control: Learn More

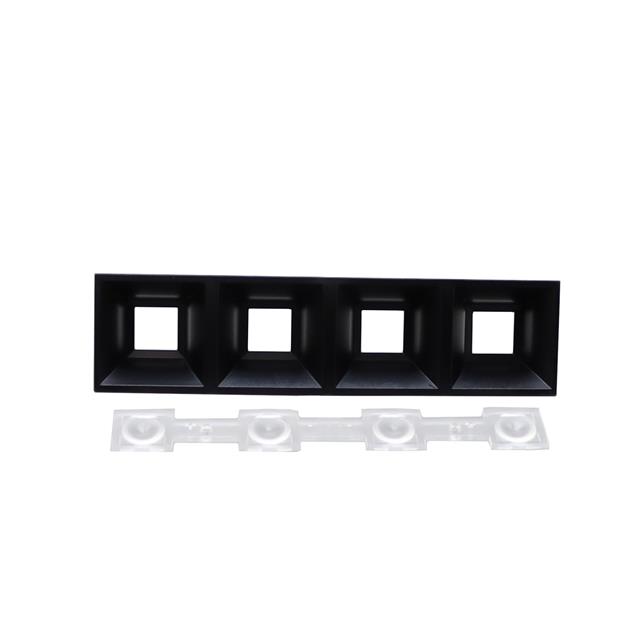

Ledil DAISY Series Lens with Holder, part number CN17428-DAISY-4X1-WW-MATT-D, is engineered for demanding illumination applications. This component features a wide 80° viewing angle, optimized for uniform light distribution. Its robust construction utilizes acrylic and polycarbonate materials, ensuring durability and clarity. The lens is designed for secure screw and snap-in mounting, facilitating efficient assembly. This model accommodates four LEDs and is specifically designed for use with Samsung and Tepcome light sources. The rectangular lens, measuring 159.25mm x 40mm with a flat top, is suitable for automotive and industrial lighting solutions. It is supplied in bulk packaging.
Additional Information
Series: DAISYRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Color | - |
| Mounting Type | Screw, Snap In |
| Material | Acrylic, Polycarbonate |
| Type | Lens With Holder |
| Viewing Angle | 80° |
| Optical Pattern | Wide |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 159.25mm x 40mm |
| For Use With/Related Manufacturer | Samsung, Tepcome |
| Number of LEDs | 4 |
Request a Quote
