CN17381_DAISY-28X1-W2-B-D
LENS 50DEG WIDE SCREW SNAP INManufacturer: Ledil
Categories: Lenses
Quality Control: Learn More

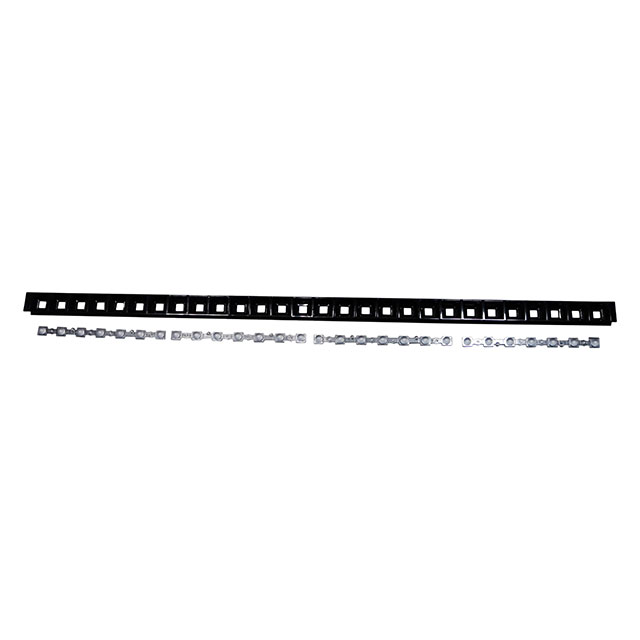

Ledil DAISY series lens with holder, part number CN17381-DAISY-28X1-W2-B-D. This diffused acrylic and polycarbonate lens assembly features a 50° wide optical pattern, designed for integration with up to 28 LEDs. Its mounting options include both screw and snap-in capabilities, offering flexible installation. The rectangular lens with a flat top has dimensions of 1.14m x 40mm. This component is suitable for applications in the automotive and general lighting industries, providing efficient light distribution.
Additional Information
Series: DAISYRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Color | - |
| Mounting Type | Screw, Snap In |
| Material | Acrylic, Polycarbonate |
| Type | Lens With Holder |
| Viewing Angle | 50° |
| Optical Pattern | Wide |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.14m x 40mm |
| For Use With/Related Manufacturer | Tepcome |
| Number of LEDs | 28 |
