CN17376_DAISY-7X1-W2-WHT-MATT-D
LENS 50DEG WIDE SCREW SNAP INManufacturer: Ledil
Categories: Lenses
Quality Control: Learn More

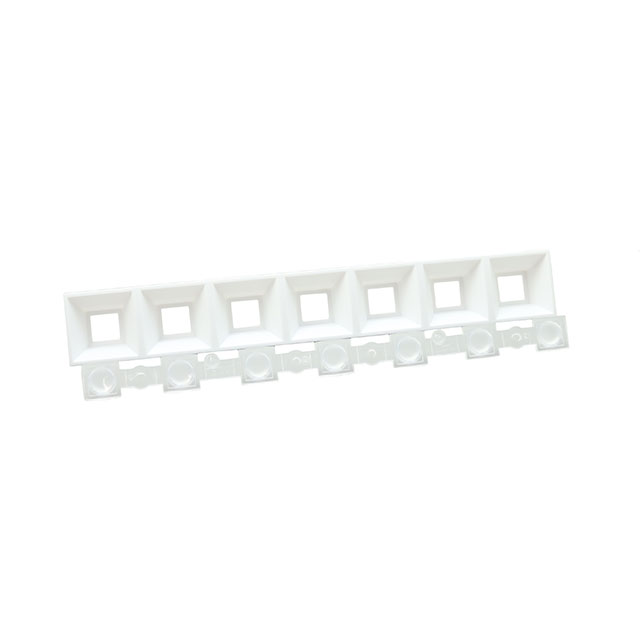

Ledil DAISY series lens, part number CN17376-DAISY-7X1-W2-WHT-MATT-D, is a diffused acrylic and polycarbonate lens with a holder. Designed for 7 LEDs, this rectangular lens features a flat top and a 50° wide optical pattern. The mounting type supports screw and snap-in installation. This component is suitable for applications requiring wide-angle illumination and is often integrated into lighting solutions within the automotive and general lighting industries. The lens measures 279.25mm x 40mm.
Additional Information
Series: DAISYRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Color | - |
| Mounting Type | Screw, Snap In |
| Material | Acrylic, Polycarbonate |
| Type | Lens With Holder |
| Viewing Angle | 50° |
| Optical Pattern | Wide |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 279.25mm x 40mm |
| For Use With/Related Manufacturer | Tepcome |
| Number of LEDs | 7 |
