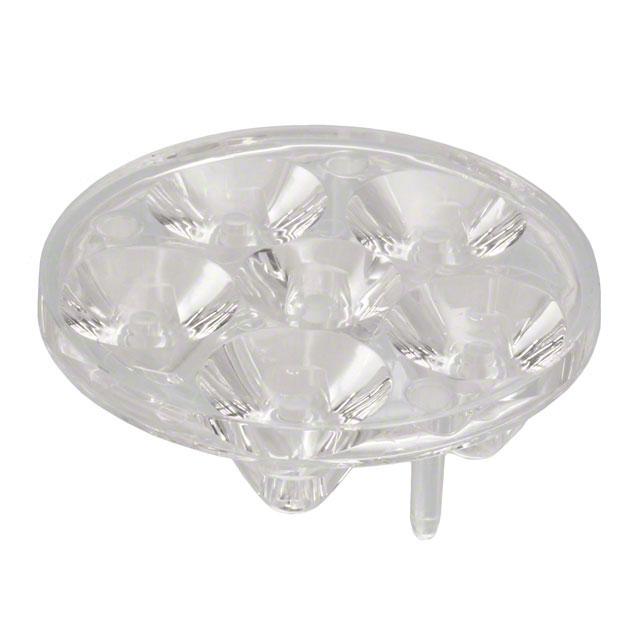

Ledil Emy Series C13602-EMY-S is a clear acrylic lens designed for precise illumination control. This round lens with a flat top features an integrated mount for simplified assembly. The optical pattern is a tight 12° spot, ideal for applications requiring focused light. It is engineered to accommodate up to six LEDs from manufacturers such as Nichia. With a 50mm diameter, this component is suitable for use in lighting solutions for automotive, industrial, and architectural sectors. The lens is supplied in tray packaging.
Additional Information
Series: EmyRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Color | Clear |
| Mounting Type | - |
| Material | Acrylic |
| Type | Lens with Integrated Mount |
| Viewing Angle | 12° |
| Optical Pattern | Spot |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 50mm Dia |
| For Use With/Related Manufacturer | Nichia |
| Number of LEDs | 6 |
