A008-GW830-Q4
LED MOD INDUS STARBRD 3000KManufacturer: LEDdynamics Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

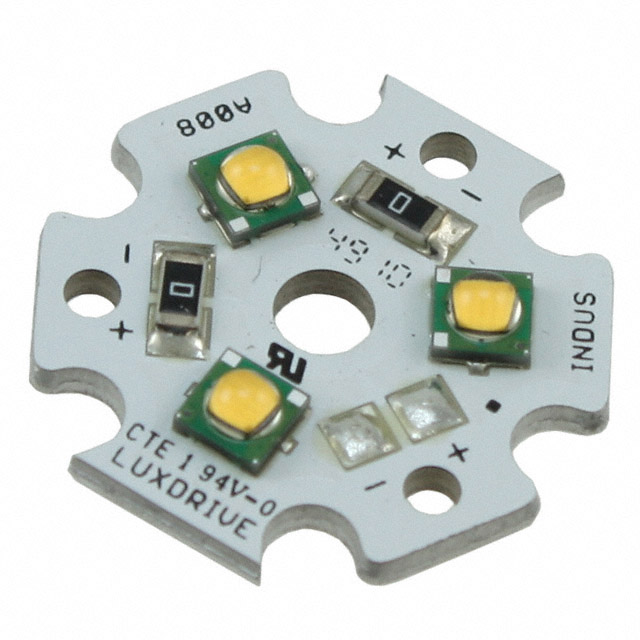

LEDdynamics Inc. Indus Star™ A008-GW830-Q4 is a high-efficacy LED module designed for demanding illumination applications. This component delivers 315 lumens typical at 350mA test current, with a correlated color temperature (CCT) of 3000K and a typical CRI of 80. Engineered on a Starboard configuration, it features a domed lens and measures 19.90mm in length and width with a height of 3.75mm. The module is rated for a maximum drive current of 700mA. Its robust design makes it suitable for industrial lighting, commercial fixtures, and general illumination systems where reliable and efficient light output is critical.
Additional Information
Series: Indus Star™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | - |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 19.90mm L x 19.90mm W |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | - |
| Height | 3.75mm |
| Current - Test | 350mA |
| Viewing Angle | - |
| Lens Type | Domed |
| Current - Max | 700mA |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 80 (Typ) |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 315lm (Typ) |
