A008-GW750-R2
LED MOD INDUS STARBRD 5000KManufacturer: LEDdynamics Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

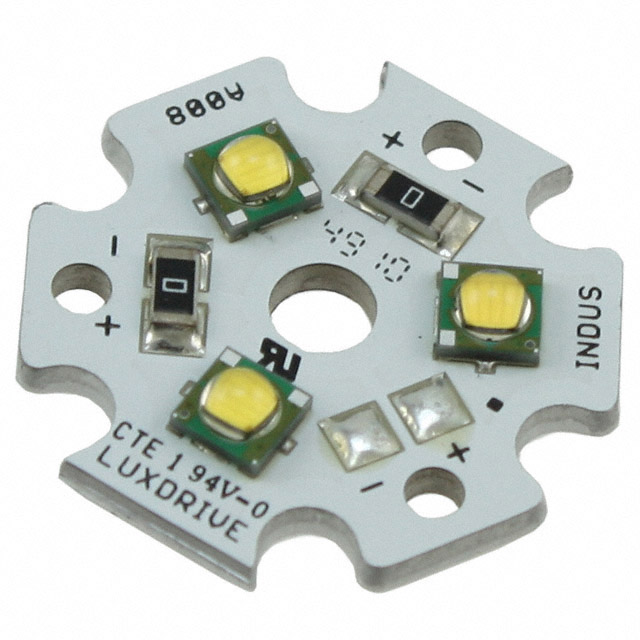

The LEDdynamics Inc. Indus Star™ A008-GW750-R2 is a cool white LED module featuring a 5000K color temperature and a typical CRI of 75. This component is designed for applications requiring efficient and reliable solid-state lighting. It operates with a maximum forward current of 700mA, with typical performance measured at 350mA. At 350mA and 25°C, the module outputs a typical luminous flux of 354 lumens. The device has a starboard configuration with a domed lens type and measures 19.90mm in length and width, with a height of 3.75mm. This LED module is suitable for use in various industrial lighting solutions.
Additional Information
Series: Indus Star™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | - |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 19.90mm L x 19.90mm W |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | - |
| Height | 3.75mm |
| Current - Test | 350mA |
| Viewing Angle | - |
| Lens Type | Domed |
| Current - Max | 700mA |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | 5000K |
| CRI (Color Rendering Index) | 75 (Typ) |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 354lm (Typ) |
