A008-EW750-Q4
LED MOD INDUS STARBRD 5000KManufacturer: LEDdynamics Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

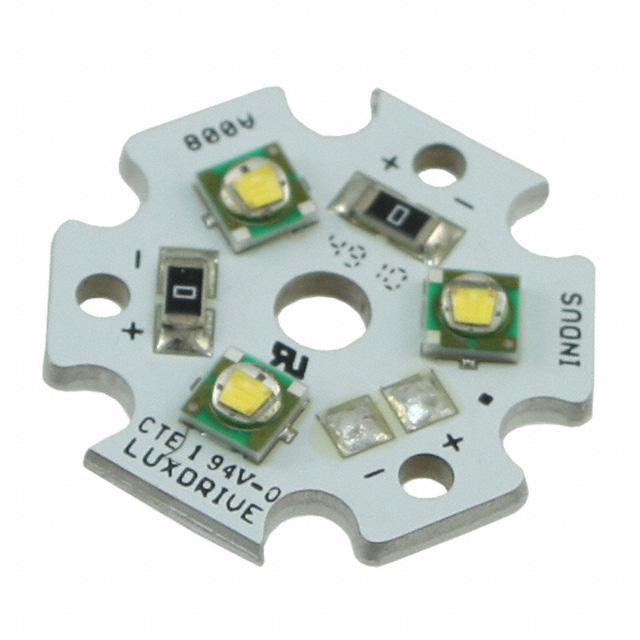

The LEDdynamics Inc. Indus Star™ A008-EW750-Q4 is a high-performance LED module designed for demanding illumination applications. Featuring a 5000K Cool White color temperature and a typical CRI of 75, this component delivers consistent light output suitable for industrial and commercial lighting solutions. The module operates with a maximum forward current of 700mA, with typical performance characterized at 350mA, yielding 315 lumens. Its compact 19.90mm x 19.90mm footprint with a 3.75mm height, and a domed lens type, facilitates integration into various luminaire designs. This LED module is commonly utilized in the industrial and commercial lighting sectors.
Additional Information
Series: Indus Star™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | - |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 19.90mm L x 19.90mm W |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | - |
| Height | 3.75mm |
| Current - Test | 350mA |
| Viewing Angle | - |
| Lens Type | Domed |
| Current - Max | 700mA |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | 5000K |
| CRI (Color Rendering Index) | 75 (Typ) |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 315lm (Typ) |
