A007-GW765-R5
LED MOD INDUS STARBRD 6500KManufacturer: LEDdynamics Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

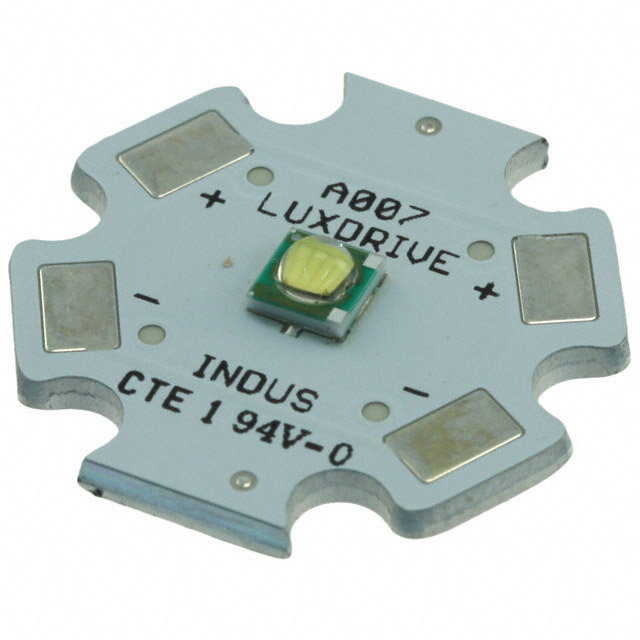

LEDdynamics Inc. Indus Star™ LED Module A007-GW765-R5 is a cool white, 6500K light engine engineered for demanding applications. This module features a typical luminous flux of 144lm at 350mA and a typical CRI of 75. Designed for efficient operation, it has a maximum continuous current rating of 700mA. The compact design measures 19.90mm by 19.90mm with a height of 3.75mm, incorporating a domed lens type. This component is suitable for industrial lighting solutions, leveraging its robust construction and consistent performance.
Additional Information
Series: Indus Star™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | - |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 19.90mm L x 19.90mm W |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | - |
| Height | 3.75mm |
| Current - Test | 350mA |
| Viewing Angle | - |
| Lens Type | Domed |
| Current - Max | 700mA |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | 6500K |
| CRI (Color Rendering Index) | 75 (Typ) |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 144lm (Typ) |
