A007-EW750-Q4
LED MOD INDUS STARBRD 5000KManufacturer: LEDdynamics Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

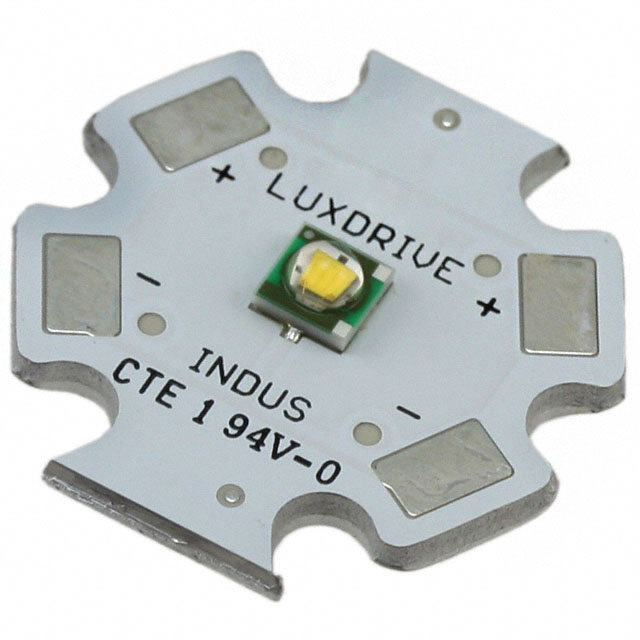

LEDdynamics Inc. Indus Star™ Series A007-EW750-Q4 is a high-efficiency LED module designed for robust lighting applications. This cool white module features a 5000K color temperature and a typical Color Rendering Index (CRI) of 75, providing clear and accurate illumination. Operating with a maximum current of 700mA and tested at 350mA, it delivers a typical luminous flux of 105 lumens at 25°C. The module has a compact footprint of 19.90mm L x 19.90mm W with a height of 3.75mm, incorporating a domed lens. Its design is suitable for demanding environments across industrial, commercial, and architectural lighting sectors.
Additional Information
Series: Indus Star™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | - |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 19.90mm L x 19.90mm W |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | - |
| Height | 3.75mm |
| Current - Test | 350mA |
| Viewing Angle | - |
| Lens Type | Domed |
| Current - Max | 700mA |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | 5000K |
| CRI (Color Rendering Index) | 75 (Typ) |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 105lm (Typ) |
