A007-EW740-Q4
LED MOD INDUS STARBRD 4000KManufacturer: LEDdynamics Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

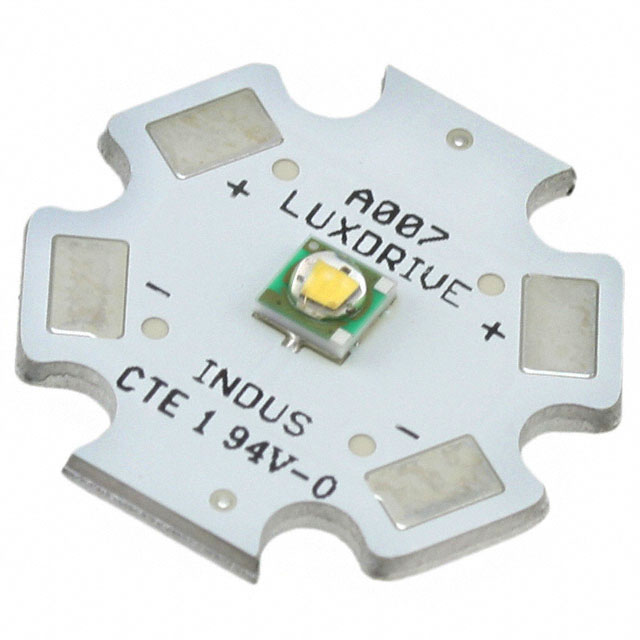

LEDdynamics Inc. Indus Star™ A007-EW740-Q4 is a high-performance LED module designed for demanding illumination applications. This neutral white module features a 4000K color temperature and a typical Color Rendering Index (CRI) of 75, ensuring accurate color representation. Operating with a maximum current of 700mA, it is built on a starboard configuration for efficient thermal management. The module measures 19.90mm in length and 19.90mm in width, with a height of 3.75mm. This component is well-suited for industrial lighting, architectural lighting, and general illumination systems where reliability and quality of light are paramount.
Additional Information
Series: Indus Star™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | - |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 19.90mm L x 19.90mm W |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | - |
| Height | 3.75mm |
| Current - Test | 350mA |
| Viewing Angle | - |
| Lens Type | Domed |
| Current - Max | 700mA |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 75 (Typ) |
| Light Emitting Surface (LES) | - |
| Temperature - Test | - |
| Luminous Flux @ Current/Temperature | - |
