A007-ERED0-N2
LED MOD INDUS STAR RED STARBRDManufacturer: LEDdynamics Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

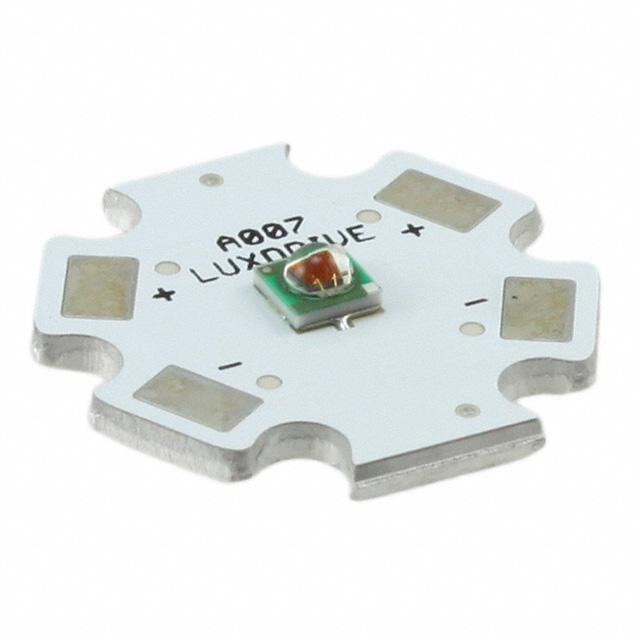

LEDdynamics Inc. Indus Star™ A007-ERED0-N2 is a red LED module configured on a starboard for high-power illumination applications. This component operates with a maximum forward current of 700mA, with typical performance characterized at 350mA. At 350mA and 25°C, it delivers a typical luminous flux of 55 lumens. The module features a domed lens and has a compact footprint measuring 19.90mm in length and width, with a height of 3.75mm. This LED module is suitable for use in industrial lighting, signage, and general illumination sectors where robust red light output is required.
Additional Information
Series: Indus Star™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | - |
| Color | Red |
| Wavelength | - |
| Size / Dimension | 19.90mm L x 19.90mm W |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | - |
| Height | 3.75mm |
| Current - Test | 350mA |
| Viewing Angle | - |
| Lens Type | Domed |
| Current - Max | 700mA |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 55lm (Typ) |
