A007-EGRN0-Q4
LED MOD INDUS STAR GRN STARBRDManufacturer: LEDdynamics Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

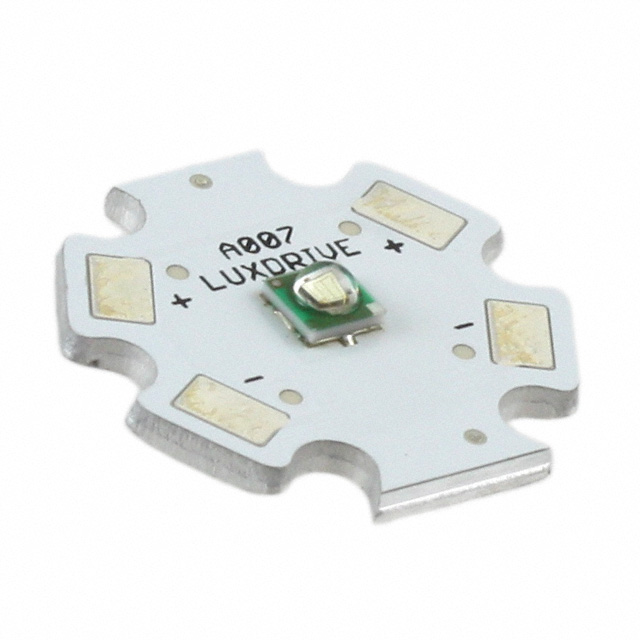

LEDdynamics Inc. Indus Star™ A007-EGRN0-Q4 is a green LED module designed for high-performance illumination applications. This component features a 19.90mm x 19.90mm footprint with a height of 3.75mm, utilizing a domed lens for light distribution. It operates with a maximum current of 700mA and a typical test current of 350mA, producing a luminous flux of 105 lumens. This LED module is suitable for industrial lighting, architectural illumination, and general purpose lighting solutions where efficient and robust green light output is required.
Additional Information
Series: Indus Star™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | - |
| Color | Green |
| Wavelength | - |
| Size / Dimension | 19.90mm L x 19.90mm W |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | - |
| Height | 3.75mm |
| Current - Test | 350mA |
| Viewing Angle | - |
| Lens Type | Domed |
| Current - Max | 700mA |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 105lm (Typ) |
