7007-PW765-N
LED MOD ENDOR STARBRD 6500KManufacturer: LEDdynamics Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

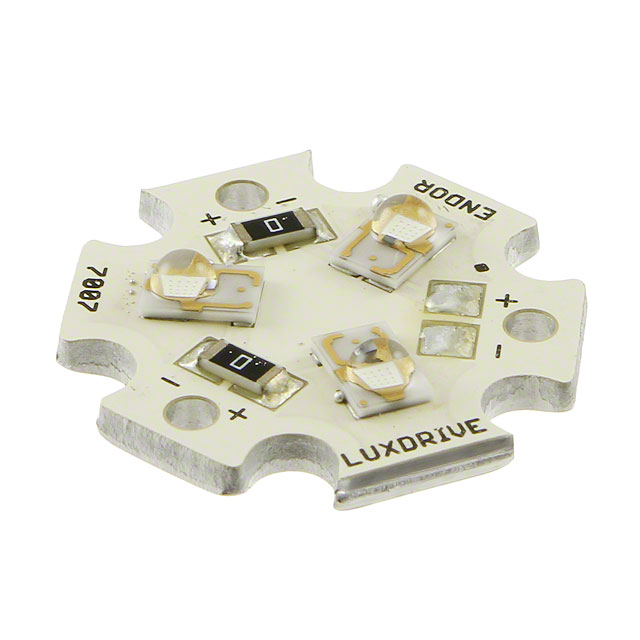

LEDdynamics Inc. Endor Star™ LED Module, part number 7007-PW765-N, offers a cool white light with a correlated color temperature of 6500K. This module features a 10.68mm diameter Light Emitting Surface (LES) and a domed lens type. It operates with a typical forward current of 350mA, capable of reaching a maximum of 700mA, and produces a typical luminous flux of 315 lumens at 25°C. The module has a typical Color Rendering Index (CRI) of 70. Its compact dimensions are 19.90mm in length and width, with a height of 3.58mm. This component is suitable for applications in general illumination and architectural lighting.
Additional Information
Series: Endor Star™RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | - |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 19.90mm L x 19.90mm W |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | - |
| Height | 3.58mm |
| Current - Test | 350mA |
| Viewing Angle | - |
| Lens Type | Domed |
| Current - Max | 700mA |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | 6500K |
| CRI (Color Rendering Index) | 70 (Typ) |
| Light Emitting Surface (LES) | 10.68mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 315lm (Typ) |
