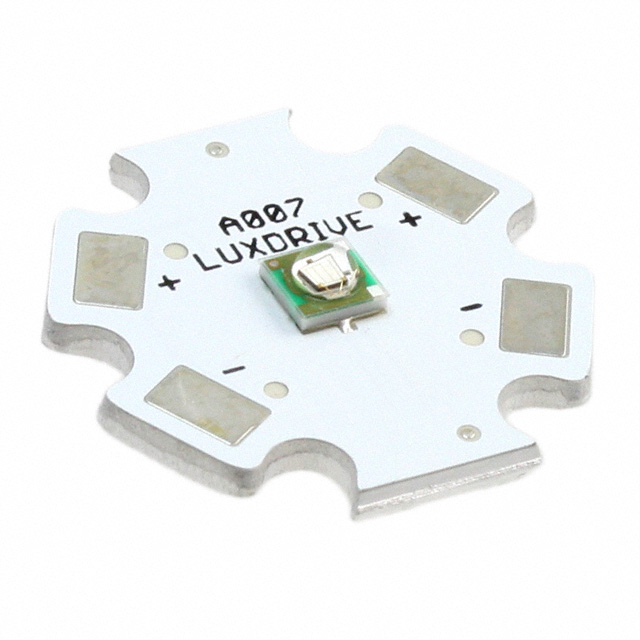

0B009-CL20840T6
PIXUS STAR - XML2 4000K, 80 CRIManufacturer: LEDdynamics Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
LED Lighting COBs Engines Modules LED Engine LUXdriveTM White, Neutral Starboard
Additional Information
Series: LUXdriveTMRoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BagDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 19.81mm Dia |
| Type | LED Engine |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 2.77V |
| Height | 3.56mm |
| Current - Test | 1.05A |
| Viewing Angle | 170° |
| Lens Type | Domed |
| Current - Max | 3A |
| Lumens/Watt @ Current - Test | 133 lm/W |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 3.56mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 386lm (Typ) |
Request a Quote
