GAL20V8B-25LPI
IC CPLD 8MC 25NS 24DIPManufacturer: Lattice Semiconductor Corporation
Categories: PLDs (Programmable Logic Device)
Quality Control: Learn More
Lattice Semiconductor Corporation's GAL®20V8-25LPI is a high-performance Complex Programmable Logic Device (CPLD) featuring 8 macrocells. This device offers a 25ns propagation delay, making it suitable for demanding digital logic applications. The GAL®20V8 series is known for its flexible architecture and robust performance, enabling efficient implementation of complex combinatorial and sequential logic functions. Packaged in a 24-pin DIP (Dual In-line Package) with through-hole mounting, this EE PLD is designed for ease of integration into existing board designs. Applications for this component span industrial automation, automotive systems, and telecommunications infrastructure where reliable and configurable logic is essential.
Additional Information
Series: GAL®20V8RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |

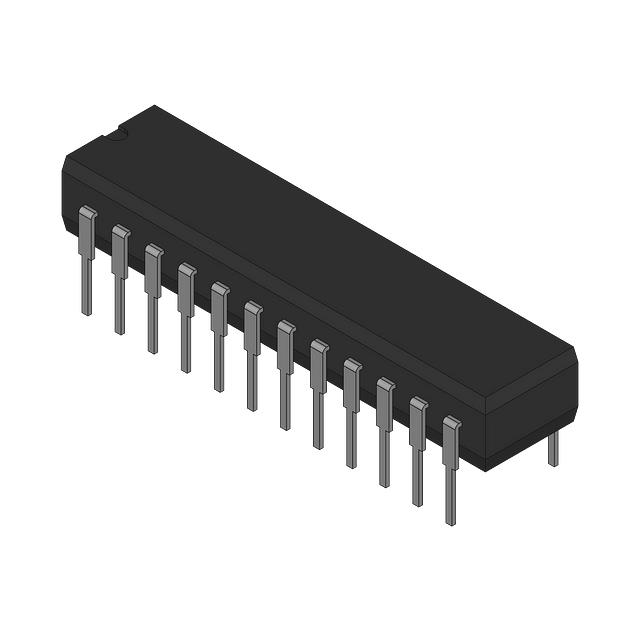

| Package / Case | 24-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Programmable Type | EE PLD |
| Number of Macrocells | 8 |
| Supplier Device Package | 24-PDIP |
| Programmable | Not Verified |
