GAL16V8D-15LJ
IC CPLD 8MC 15NS 20PLCCManufacturer: Lattice Semiconductor Corporation
Categories: PLDs (Programmable Logic Device)
Quality Control: Learn More
Lattice Semiconductor Corporation GAL®16V8-15LJ is an 8-macrocell Complex Programmable Logic Device (CPLD) from the GAL®16V8 family. This EE PLD offers a propagation delay of 15ns and features 8 macrocells, each capable of configurable logic array (CLA) functionality. The device is housed in a 20-PLCC (J-Lead) surface-mount package, supplied in tubes. Its architecture supports a wide range of logic functions, making it suitable for applications in industrial control systems, telecommunications infrastructure, and consumer electronics where flexible logic implementation is required. The GAL®16V8 series is known for its non-volatile configuration, allowing for instant power-up and retaining programmed logic states without external configuration memory.
Additional Information
Series: GAL®16V8RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Programmable Type | EE PLD |
| Number of Macrocells | 8 |
| Supplier Device Package | 20-PLCC (9x9) |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

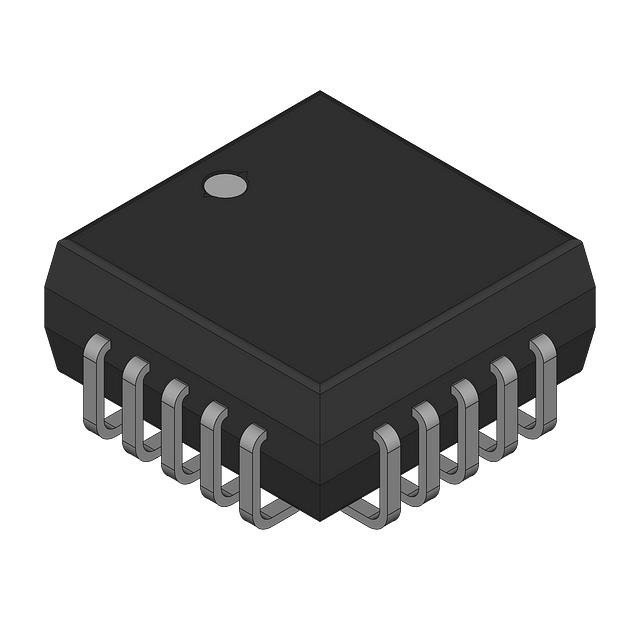

GAL16V8QS-20LVC
