LCMXO3L-2100E-5MG256C
IC FPGA 206 I/O 256CSFBGAManufacturer: Lattice Semiconductor Corporation
Categories: FPGAs (Field Programmable Gate Array)
Quality Control: Learn More
Lattice Semiconductor Corporation MachXO3 series FPGA, part number LCMXO3L-2100E-5MG256C. This device features 2112 LUTs, 264 Logic Array Blocks (LABs), and 75776 RAM bits, providing robust implementation capabilities. It offers 206 programmable I/O pins, configurable to support a wide range of interface standards. Packaged in a 256-CSFBGA (9x9) surface-mount configuration, this FPGA operates within a 1.14V to 1.26V supply voltage range and a junction temperature range of 0°C to 85°C. The MachXO3 family is well-suited for applications in industrial automation, communications infrastructure, and consumer electronics requiring flexible, low-power logic implementation.
Additional Information
Series: MachXO3RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |

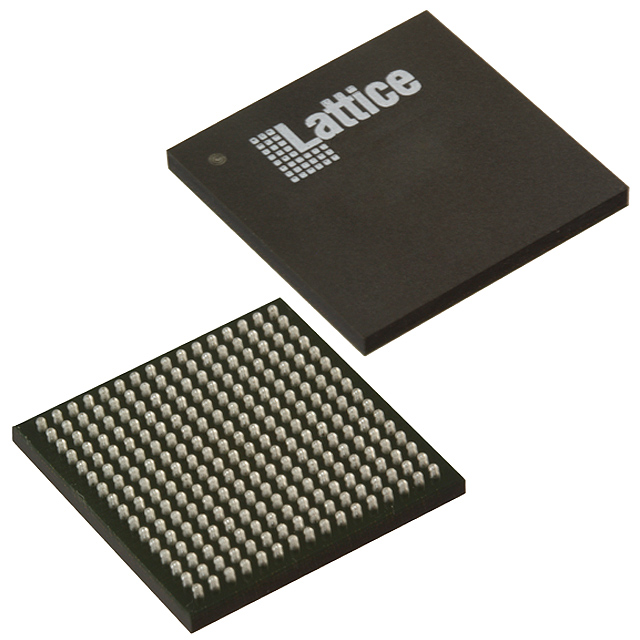

| Package / Case | 256-VFBGA, CSPBGA |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 85°C (TJ) |
| Voltage - Supply | 1.14V ~ 1.26V |
| Number of Logic Elements/Cells | 2112 |
| Supplier Device Package | 256-CSFBGA (9x9) |
| Number of LABs/CLBs | 264 |
| Total RAM Bits | 75776 |
| Number of I/O | 206 |
| Programmable | Not Verified |
