LC5256MV-4F256C
IC CPLD 256MC 4NS 256FPBGAManufacturer: Lattice Semiconductor Corporation
Categories: CPLDs (Complex Programmable Logic Devices)
Quality Control: Learn More
Lattice Semiconductor Corporation's ispXPLD® 5000MV series CPLD, part number LC5256MV-4F256C, offers 256 macrocells and 8 logic array blocks, providing robust logic density. This device features a maximum propagation delay of 4 ns, ensuring high-speed performance critical for applications in industrial control, telecommunications infrastructure, and consumer electronics. With 141 user I/O pins and an in-system programmable architecture, the LC5256MV-4F256C facilitates efficient design iteration and implementation. The component is housed in a 256-FPBGA (17x17) package, designed for surface mounting. Its operating temperature range is 0°C to 90°C (TJ), and it operates with an internal supply voltage between 3V and 3.6V. This CPLD is supplied in tray packaging.
Additional Information
Series: ispXPLD® 5000MVRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 256-BGA |
| Mounting Type | Surface Mount |
| Programmable Type | In System Programmable |
| Number of Macrocells | 256 |
| Operating Temperature | 0°C ~ 90°C (TJ) |
| Delay Time tpd(1) Max | 4 ns |
| Supplier Device Package | 256-FPBGA (17x17) |
| Number of Logic Elements/Blocks | 8 |
| Voltage Supply - Internal | 3V ~ 3.6V |
| Number of I/O | 141 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

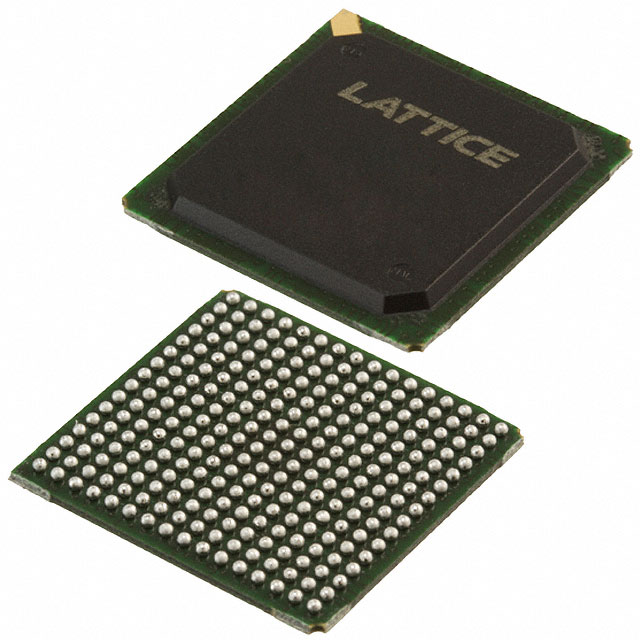

LC5256MV-4FN256C
