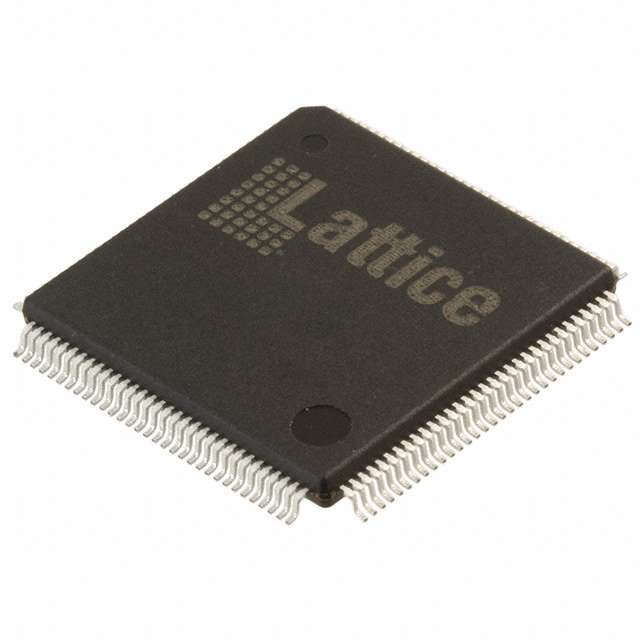

ISPLSI 1048E-125LTN
IC CPLD 192MC 7.5NS 128TQFPManufacturer: Lattice Semiconductor Corporation
Categories: CPLDs (Complex Programmable Logic Devices)
Quality Control: Learn More
Lattice Semiconductor Corporation's ispLSI® 1000E series ISPLSI-1048E-125LTN is a high-performance, 5V in-system programmable Complex Programmable Logic Device (CPLD). This component features 192 macrocells, 48 universal array terms, and 8000 effective gates, offering robust logic density. It provides a maximum propagation delay of 7.5 ns, facilitating high-speed digital designs. The device supports 96 user I/O pins and is housed in a 128-TQFP surface-mount package, designed for efficient board integration. Operating within a 4.75V to 5.25V supply range and an ambient temperature of 0°C to 70°C, the ISPLSI-1048E-125LTN is commonly employed in industrial control, telecommunications infrastructure, and consumer electronics applications requiring flexible and dense logic solutions.
Additional Information
Series: ispLSI® 1000ERoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 128-LQFP |
| Mounting Type | Surface Mount |
| Programmable Type | In System Programmable |
| Number of Gates | 8000 |
| Number of Macrocells | 192 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Delay Time tpd(1) Max | 7.5 ns |
| Supplier Device Package | 128-TQFP (14x14) |
| Number of Logic Elements/Blocks | 48 |
| Voltage Supply - Internal | 4.75V ~ 5.25V |
| Number of I/O | 96 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

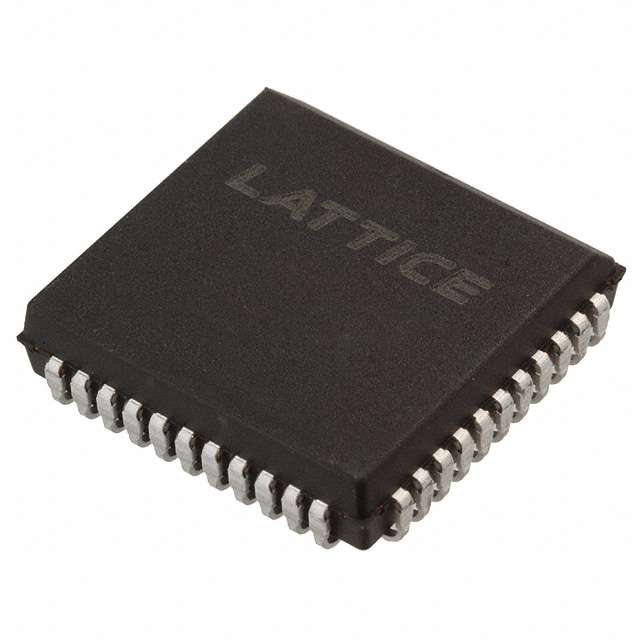

ISPLSI 1016E-125LJN
IC CPLD 64MC 7.5NS 44PLCC

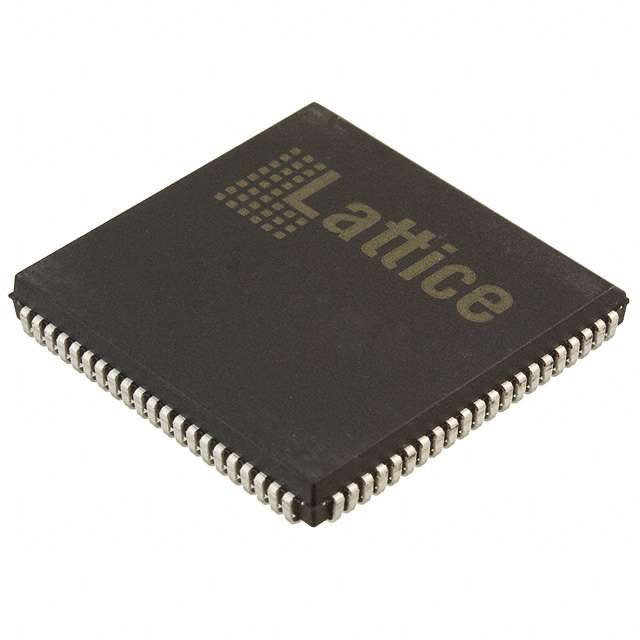

ISPLSI 1032E-100LJ
