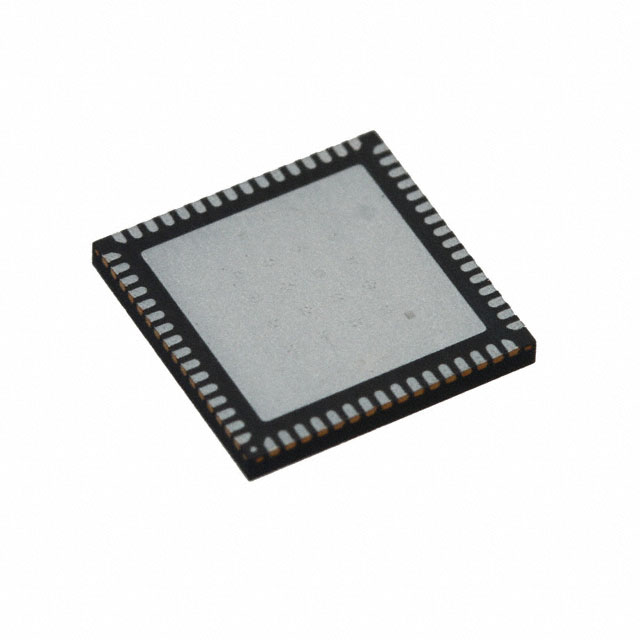

ISPPAC-CLK5410D-01SN64I
IC BUFFER FANOUT 10OUTPUT 64QFNSManufacturer: Lattice Semiconductor Corporation
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
The Lattice Semiconductor Corporation ispClock™ ISPPAC-CLK5410D-01SN64I is a versatile clock buffer and frequency synthesizer. This single-circuit device offers a maximum operating frequency of 400MHz and supports a wide array of input and output standards including HCSL, HSTL, LVDS, LVPECL, MLVDS, and SSTL. It features a configurable ratio of 2 inputs to 10 outputs, enabling flexible clock distribution. The device includes a PLL with bypass functionality, a divider, and supports differential signaling for both inputs and outputs. Engineered for robust performance, it operates within a voltage range of 3V to 3.6V and is specified for an industrial temperature range of -40°C to 85°C. The ISPPAC-CLK5410D-01SN64I is housed in a 64-VFQFN exposed pad package, suitable for surface mount applications. This component is commonly utilized in telecommunications, networking infrastructure, and high-performance computing applications where precise clock management is critical.
Additional Information
Series: ispClock™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | HCSL, HSTL, LVDS, LVPECL, MLVDS, SSTL |
| Frequency - Max | 400MHz |
| Input | HCSL, HSTL, LVDS, LVPECL, MLVDS, SSTL |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 3.6V |
| Ratio - Input:Output | 2:10 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 64-QFNS (9x9) |
| PLL | Yes with Bypass |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
