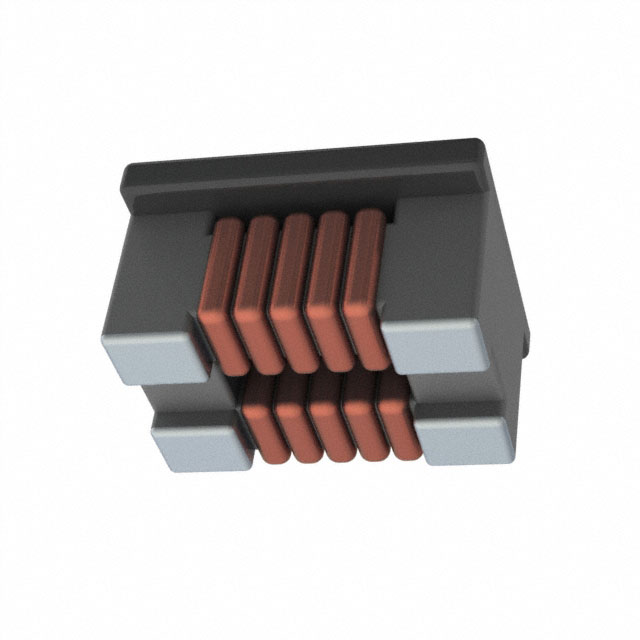

CM7060M132R-10
CMC 2.5A 2LN 1.3KOHM SMDManufacturer: Laird-Signal Integrity Products
Categories: Common Mode Chokes
Quality Control: Learn More
2 Line Common Mode Choke Surface Mount 1.3 kOhms @ 100 MHz 2.5A DCR 25mOhm
Additional Information
Series: CMRoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Horizontal, 4 PC Pad |
| Filter Type | Power Line |
| Size / Dimension | 0.276"" L x 0.236"" W (7.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature | -40°C ~ 125°C |
| Approval Agency | - |
| Ratings | - |
| Height (Max) | 0.150"" (3.80mm) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 80V |
| Current Rating (Max) | 2.5A |
| DC Resistance (DCR) (Max) | 25mOhm |
| Impedance @ Frequency | 1.3 kOhms @ 100 MHz |
