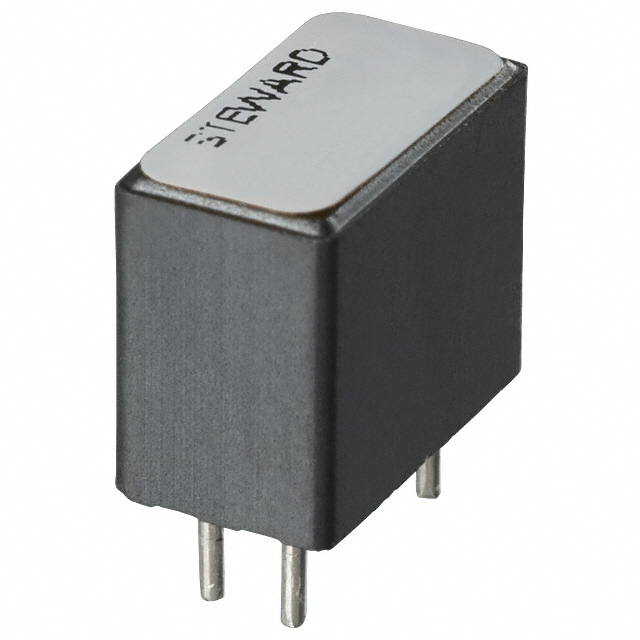

CM2545X171B-10
CMC 10A 2LN 170 OHM THManufacturer: Laird-Signal Integrity Products
Categories: Common Mode Chokes
Quality Control: Learn More
2 Line Common Mode Choke Through Hole 170 Ohms 10A DCR 10mOhm
Additional Information
Series: CMRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Vertical, 4 PC Pin |
| Filter Type | Power Line |
| Size / Dimension | 0.448"" L x 0.248"" W (11.38mm x 6.30mm) |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature | -40°C ~ 125°C |
| Approval Agency | - |
| Ratings | - |
| Height (Max) | 0.374"" (9.50mm) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 340V |
| Current Rating (Max) | 10A |
| DC Resistance (DCR) (Max) | 10mOhm |
| Impedance @ Frequency | 170 Ohms @ 100 MHz |
Request a Quote
