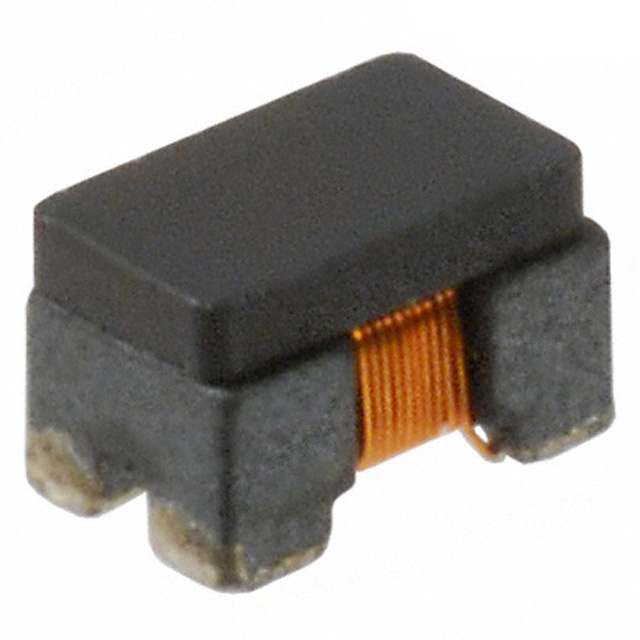

CM0805C161R-10
CMC 300MA 2LN 160 OHM SMDManufacturer: Laird-Signal Integrity Products
Categories: Common Mode Chokes
Quality Control: Learn More
2 Line Common Mode Choke Surface Mount 160 Ohms 300mA DCR 350mOhm
Additional Information
Series: CM0805RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Horizontal, 4 PC Pad |
| Filter Type | Signal Line |
| Size / Dimension | 0.079"" L x 0.047"" W (2.00mm x 1.20mm) |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature | -40°C ~ 125°C |
| Approval Agency | - |
| Ratings | - |
| Height (Max) | 0.047"" (1.20mm) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | - |
| Current Rating (Max) | 300mA |
| DC Resistance (DCR) (Max) | 350mOhm |
| Impedance @ Frequency | 160 Ohms @ 100 MHz |
