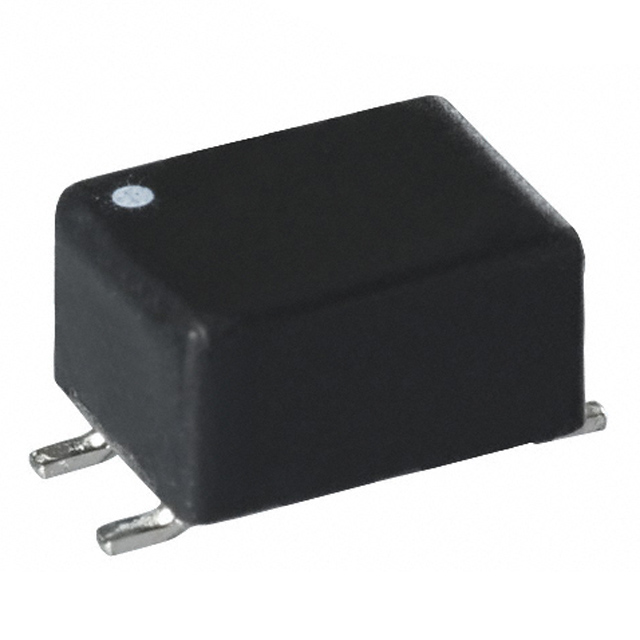

CC2824E474R-10
CMC 470UH 700MA 2LN 8.6KOHM SMDManufacturer: Laird-Signal Integrity Products
Categories: Common Mode Chokes
Quality Control: Learn More
470 µH 2 Line Common Mode Choke Surface Mount 8.6 kOhms 700mA DCR 260mOhm
Additional Information
Series: CCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Horizontal, 4 Flat Lead |
| Filter Type | Signal Line |
| Size / Dimension | 0.354"" L x 0.217"" W (9.00mm x 5.50mm) |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature | -40°C ~ 125°C |
| Approval Agency | - |
| Ratings | - |
| Height (Max) | 0.193"" (4.90mm) |
| Voltage Rating - AC | 42V |
| Voltage Rating - DC | 80V |
| Current Rating (Max) | 700mA |
| DC Resistance (DCR) (Max) | 260mOhm |
| Inductance @ Frequency | 470 µH @ 100 kHz |
| Impedance @ Frequency | 8.6 kOhms @ 5 MHz |
