PS783-I15SL1
0~10MPA, SEALED GAUGE, COMPENSATManufacturer: L-com
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

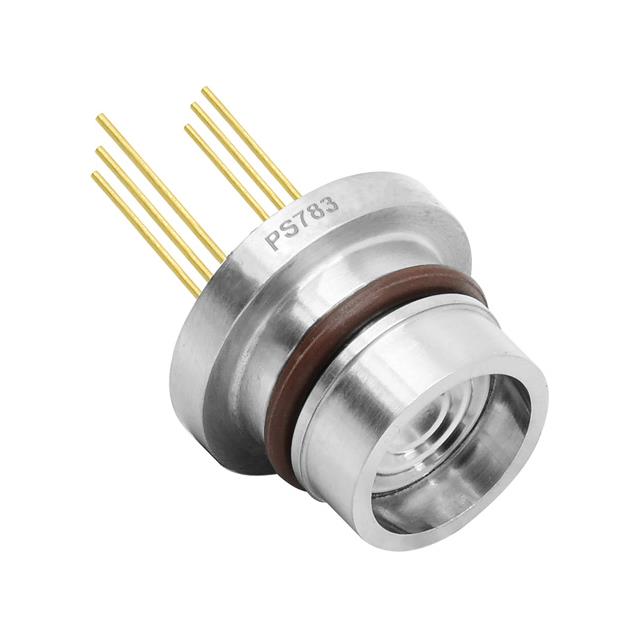

Pressure Sensor 1450.38PSI (10000kPa) Sealed Gauge Cylinder
Additional Information
Series: PS783RoHS Status: RoHS CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: BagDownload Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bag |
| Package / Case | Cylinder |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | - |
| Operating Pressure | 1450.38PSI (10000kPa) |
| Pressure Type | Sealed Gauge |
| Accuracy | - |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | 10V |
| Port Size | - |
| Applications | Industrial Automation |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 2175.57PSI (15000kPa) |
| Grade | - |
| Qualification | - |
