PS783-I12GL1
0~2MPA, GAUGE, COMPENSATED, WITHManufacturer: L-com
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

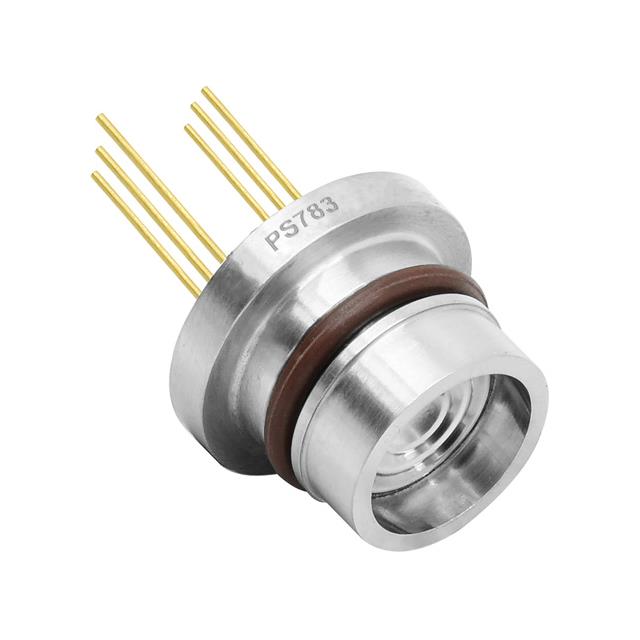

L-com PS783-I12GL1 is a compensated gauge pressure sensor from the PS783 series. This electronic component is designed for applications requiring precise pressure measurement up to 290.08 PSI (2000 kPa) gauge. It features a temperature-compensated analog voltage output, operating within a wide temperature range of -40°C to 125°C. The sensor is packaged in a cylinder with a through-hole mounting type and PC pin termination, suitable for industrial automation environments. It operates with a 10V supply voltage and has a maximum pressure rating of 435.11 PSI (3000 kPa).
Additional Information
Series: PS783RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDownload Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bag |
| Package / Case | Cylinder |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | - |
| Operating Pressure | 290.08PSI (2000kPa) |
| Pressure Type | Gauge |
| Accuracy | - |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | 10V |
| Port Size | - |
| Applications | Industrial Automation |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 435.11PSI (3000kPa) |
| Grade | - |
| Qualification | - |
