F-51851GNFQJ-LY-ADN
GRAPHIC DISPLAY FSTN BLACK 5.2Manufacturer: Kyocera International, Inc.
Categories: LCD, OLED, Graphic
Quality Control: Learn More

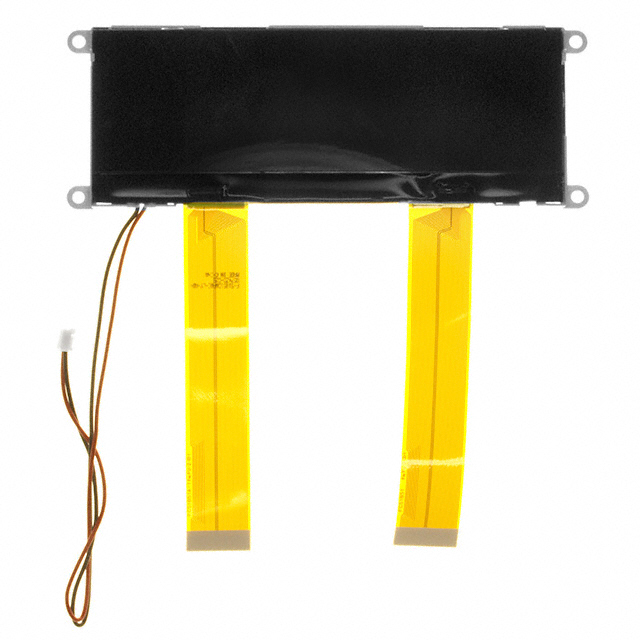

Kyocera International, Inc. FSTN Graphic Display Module, Part Number F-51851GNFQJ-LY-ADN. This transmissive display features a 5.2-inch (132.08mm) diagonal screen size with a 240 x 64 dot pixel resolution. It utilizes Film Super-Twisted Nematic (FSTN) technology for its monochrome graphics, displaying black characters on a yellow background. The module is equipped with a yellow LED backlight. Connectivity is provided via a parallel/serial interface. The viewing area measures 130.20mm wide by 37.60mm high. This component is suitable for applications in industrial control systems, test and measurement equipment, and medical devices.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transmissive |
| Backlight | LED - Yellow |
| Interface | Parallel/Serial |
| Viewing Area | 130.20mm W x 37.60mm H |
| Dot Pixels | 240 x 64 |
| Diagonal Screen Size | 5.2"" (132.08mm) |
| Background Color | Yellow |
| Graphics Color | Black |
| Touchscreen | - |
| Packaging |
