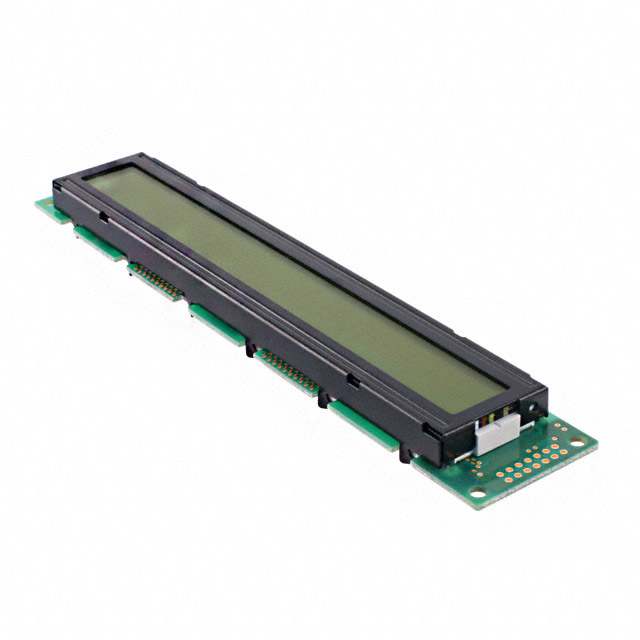

DMC-40202NY-LY-AZE-BDN
LCD MOD 80DIG 40X2 TRANS YLW/GRNManufacturer: Kyocera International, Inc.
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
Kyocera International, Inc. DMC-40202NY-LY-AZE-BDN is a character LCD module featuring an 80-character, 40x2 alphanumeric display. This STN-Super-Twisted Nematic transmissive display utilizes a 5x8 dot matrix for character formation and is illuminated by a yellow/green LED backlight. The module operates with a parallel interface and accepts a supply voltage range of 4.5V to 5.5V. Its outline dimensions are 182.00mm x 34.50mm x 15.10mm, with a viewing area of 152.50mm x 16.50mm. The operating temperature range is 0°C to 50°C. This component is commonly specified in industrial control, point-of-sale systems, and instrumentation applications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transmissive |
| Backlight | LED - Yellow/Green |
| Interface | Parallel |
| Operating Temperature | 0°C ~ 50°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Viewing Area | 152.50mm L x 16.50mm W |
| Character Size | - |
| Display Format | 40 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | - |
| Outline L x W x H | 182.00mm x 34.50mm x 15.10mm |
| Text Color | Yellow |
| Background Color | Green |
| Number of Characters | 80.0 |
