DMC-20481NY-LY-BAE-BKN
LCD MOD 80DIG 20X4 TRANSMISV YLWManufacturer: Kyocera International, Inc.
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
Kyocera International, Inc. DMC-20481NY-LY-BAE-BKN is a 20x4 character LCD module with 80 total characters. This STN-Super-Twisted Nematic display features a transmissive mode for clear visibility and is illuminated by a yellow LED backlight. The character format is 5x8 dots, with individual dot dimensions of 0.55mm W x 0.55mm H, and characters measuring 4.75mm H x 2.95mm W. The module's overall dimensions are 98.50mm x 61.00mm x 15.60mm, with a viewing area of 76.00mm x 25.20mm. Operating voltage is specified as 4.5V to 5.5V, with an operating temperature range of 0°C to 50°C. This component is suitable for applications in industrial control, test and measurement equipment, and point-of-sale systems.
Additional Information
Series: DMC-20481RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transmissive |
| Backlight | LED - Yellow |
| Interface | - |
| Operating Temperature | 0°C ~ 50°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Viewing Area | 76.00mm L x 25.20mm W |
| Character Size | 4.75mm H x 2.95mm W |
| Display Format | 20 x 4 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.55mm W x 0.55mm H |
| Outline L x W x H | 98.50mm x 61.00mm x 15.60mm |
| Text Color | - |
| Background Color | Green |
| Number of Characters | 80.0 |
Request a Quote
Clients Also Buy
DMC-20481NY-LY-ABE
LCD MOD 80DIG 20X4 TRANS YLW/GRN
DMC-20481NY-LY-AGE
LCD MOD 80DIG 20X4 TRANS YLW/GRN

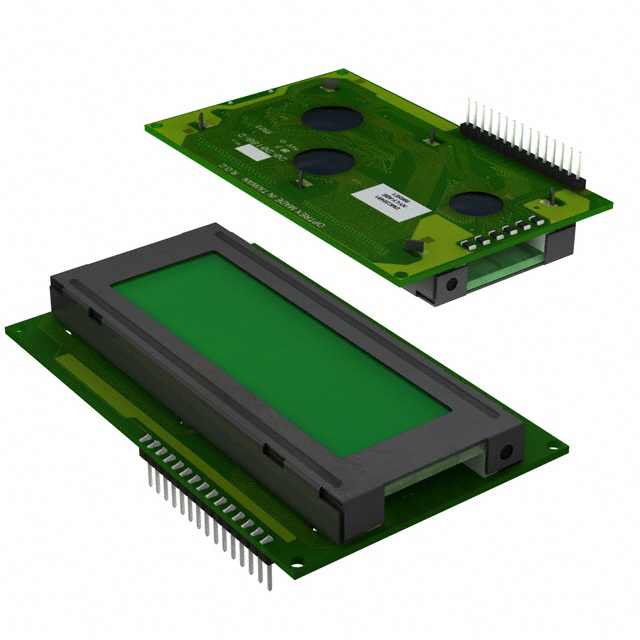

DMC-20481NY-LY-AZE-BJN
