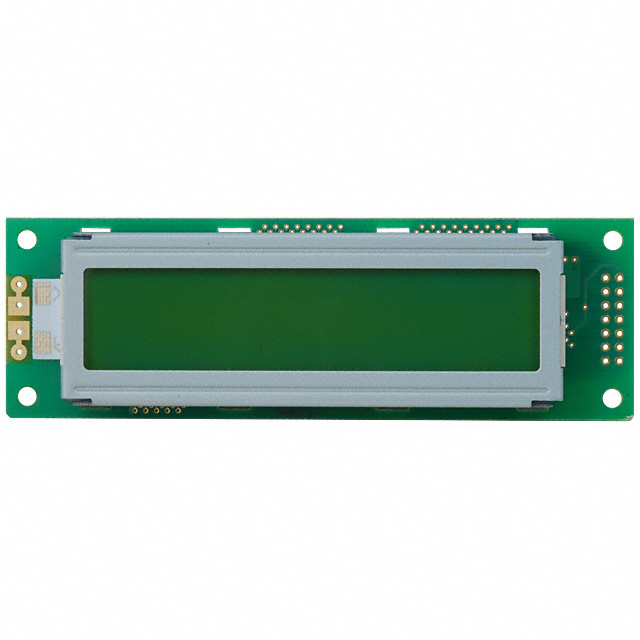

DMC-20261NY-LY-CCE-CMN
LCD MOD 40DIG 20X2 TRANS YLW/GRNManufacturer: Kyocera International, Inc.
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
The Kyocera International, Inc. DMC-20261NY-LY-CCE-CMN is a character display module featuring a 20x2 character format with a 5 x 8 dot matrix resolution. This STN - Super-Twisted Nematic display utilizes a transmissive mode and provides a yellow text color on a green background with a yellow/green LED backlight. The module offers a 40-character capacity with individual characters measuring 5.55mm H x 3.20mm W. Its parallel interface facilitates data transfer, and the overall outline dimensions are 116.00mm x 37.00mm x 15.70mm, with a viewing area of 83.00mm L x 18.60mm W. This component is suitable for applications requiring clear alphanumeric output in industrial automation, test and measurement equipment, and point-of-sale systems. The operating temperature range is 0°C to 50°C, and it operates on a supply voltage of 4.5V to 5.5V.
Additional Information
Series: DMC-20261RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transmissive |
| Backlight | LED - Yellow/Green |
| Interface | Parallel |
| Operating Temperature | 0°C ~ 50°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Viewing Area | 83.00mm L x 18.60mm W |
| Character Size | 5.55mm H x 3.20mm W |
| Display Format | 20 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.60mm W x 0.65mm H |
| Outline L x W x H | 116.00mm x 37.00mm x 15.70mm |
| Text Color | Yellow |
| Background Color | Green |
| Number of Characters | 40.0 |
Request a Quote
Clients Also Buy
DMC-20261NY-LY-AXE
LCD MOD 40DIG 20X2 TRANS YLW/GRN
DMC-20261NYJ-LY-BCE
LCD MOD 40DIG 20X2 TRANS YLW/GRN

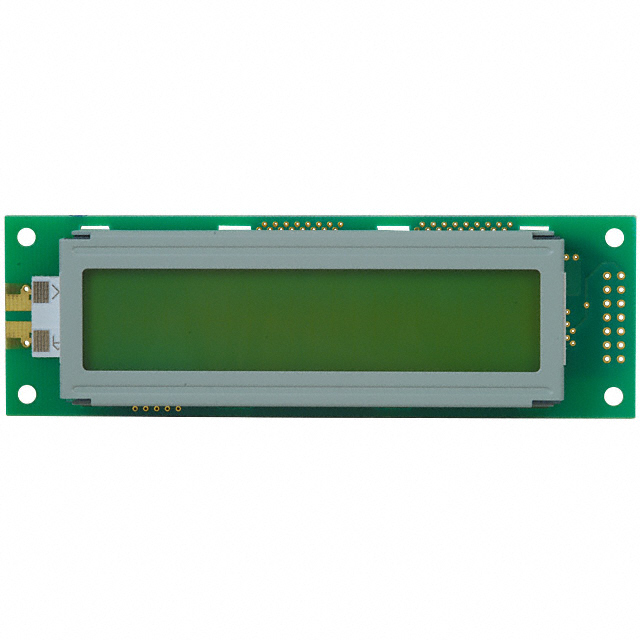

DMC-20261NYJ-LY-CDE-CKN
