DMC-16230NY-LY-EDE-EFN
LCD MOD 32DIG 16X2 TRANS YLW/GRNManufacturer: Kyocera International, Inc.
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

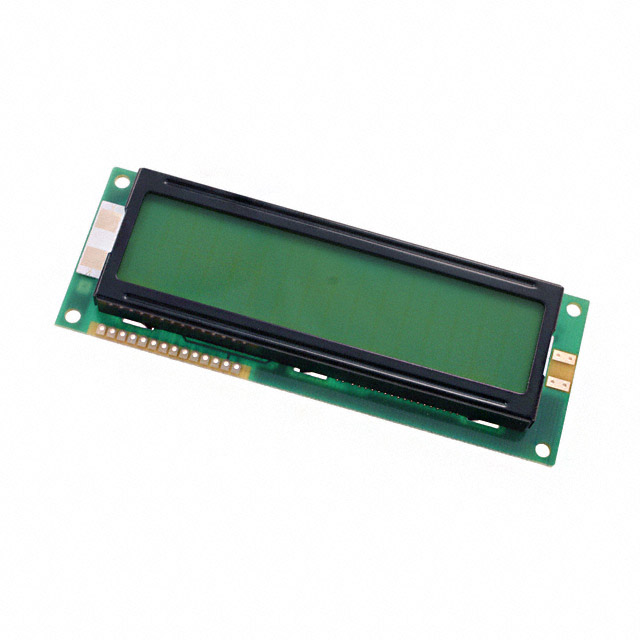

The Kyocera International, Inc. DMC-16230NY-LY-EDE-EFN is a transmissive STN character display module featuring a 16x2 character format with a total of 32 characters. This module presents yellow text on a green background, illuminated by a yellow/green LED backlight. The display utilizes a 5x7 dot matrix character format with cursor support. Key specifications include a character size of 8.06mm H x 4.84mm W and a dot size of 0.92mm W x 1.10mm H. The module operates from a 4.5V to 5.5V supply voltage and has an operating temperature range of 0°C to 50°C. The interface is parallel, facilitating data transfer. Its outline dimensions are 122.00mm x 44.00mm x 14.60mm, with a viewing area of 99.00mm L x 24.00mm W. This component is commonly utilized in industrial control, instrumentation, and point-of-sale systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transmissive |
| Backlight | LED - Yellow/Green |
| Interface | Parallel |
| Operating Temperature | 0°C ~ 50°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Viewing Area | 99.00mm L x 24.00mm W |
| Character Size | 8.06mm H x 4.84mm W |
| Display Format | 16 x 2 |
| Character Format | 5 x 7 Dots w/Cursor |
| Dot Size | 0.92mm W x 1.10mm H |
| Outline L x W x H | 122.00mm x 44.00mm x 14.60mm |
| Text Color | Yellow |
| Background Color | Green |
| Number of Characters | 32.0 |
