DMC-16202NY-LY-BJE-BLN
LCD MOD 32DIG 16X2 TRANS YLW/GRNManufacturer: Kyocera International, Inc.
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

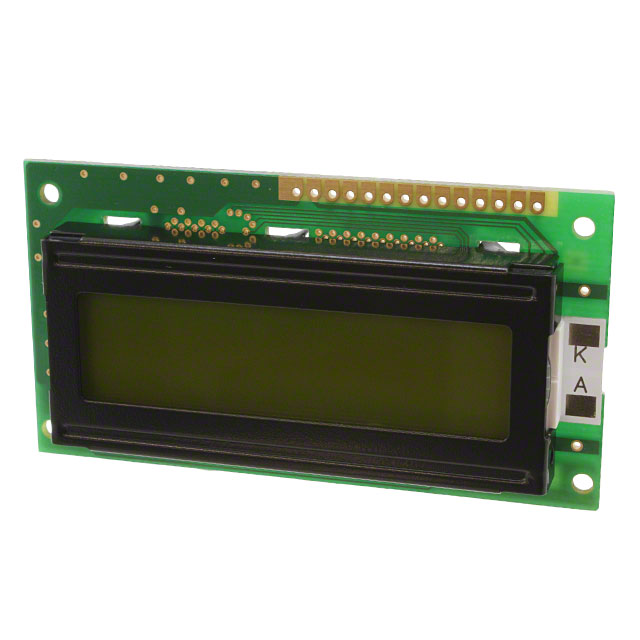

The Kyocera International, Inc. DMC-16202NY-LY-BJE-BLN is a 16x2 character LCD module featuring a transmissive STN display with yellow text on a green background. This module provides a 32-character display capacity, with each character composed of a 5x8 dot matrix. The backlight utilizes yellow/green LEDs for illumination. The interface is parallel, facilitating data transfer. Key dimensions include an outline of 84.00mm x 45.00mm x 15.10mm, with a viewing area of 61.00mm L x 16.00mm W. Operating temperature ranges from 0°C to 50°C, and the supply voltage is 4.5V to 5.5V. This component is commonly found in industrial control systems and instrumentation applications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transmissive |
| Backlight | LED - Yellow/Green |
| Interface | Parallel |
| Operating Temperature | 0°C ~ 50°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Viewing Area | 61.00mm L x 16.00mm W |
| Character Size | 5.55mm H x 2.95mm W |
| Display Format | 16 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.55mm W x 0.65mm H |
| Outline L x W x H | 84.00mm x 45.00mm x 15.10mm |
| Text Color | Yellow |
| Background Color | Green |
| Number of Characters | 32.0 |
