C-51850NFQJ-LG-ACN
LCD MOD 80DIG 40X2 TRANSMISV GRNManufacturer: Kyocera International, Inc.
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
Kyocera International, Inc. C-51850 series character display module, part number C-51850NFQJ-LG-ACN, offers 40 characters by 2 lines (80 total characters) with a 5 x 8 dot matrix format. This transmissive FSTN display features green LED backlighting and a green text color on a black background. The parallel interface facilitates data transfer. With a character size of 5.55mm H x 3.20mm W and a dot size of 0.62mm W x 0.67mm H, it provides clear readability. The module operates within a temperature range of -20°C to 70°C and requires a supply voltage of 4.5V to 5.5V. Its outline dimensions are 182.00mm x 34.50mm x 15.10mm, with a viewing area of 153.50mm L x 17.50mm W. This component is suitable for applications in industrial control and instrumentation.
Additional Information
Series: C-51850RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transmissive |
| Backlight | LED - Green |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Viewing Area | 153.50mm L x 17.50mm W |
| Character Size | 5.55mm H x 3.20mm W |
| Display Format | 40 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.62mm W x 0.67mm H |
| Outline L x W x H | 182.00mm x 34.50mm x 15.10mm |
| Text Color | Green |
| Background Color | Black |
| Number of Characters | 80.0 |
| Packaging |
Request a Quote
Clients Also Buy

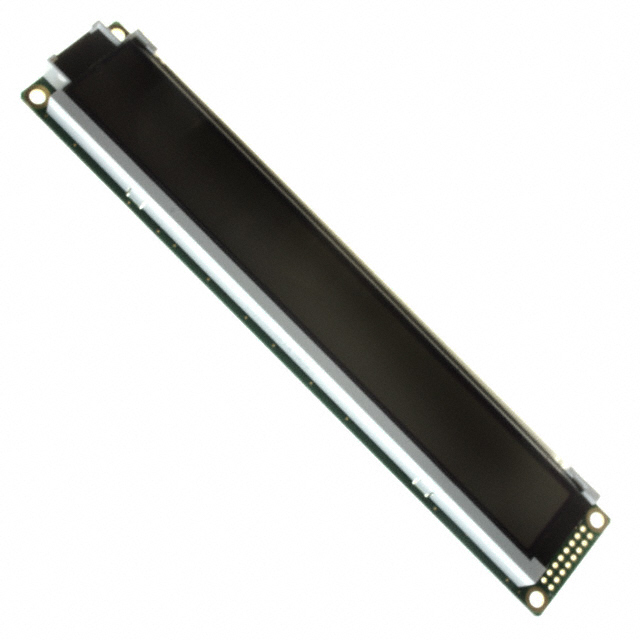

C-51850NFJ-SLW-ADN
LCD MOD 80DIG 40X2 TRANSFLCT WHT

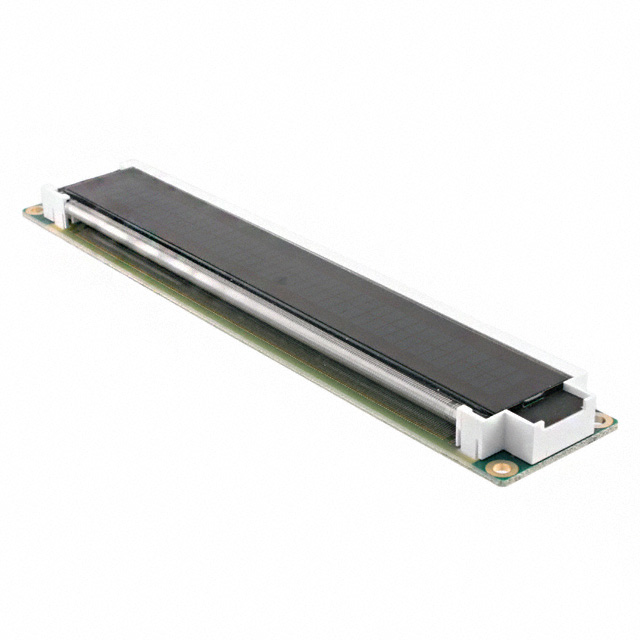

C-51850NFQJ-LW-AAN
