C-51505NFQJ-LW-ALN
LCD MOD 40DIG 20X2 TRANSMISV WHTManufacturer: Kyocera International, Inc.
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

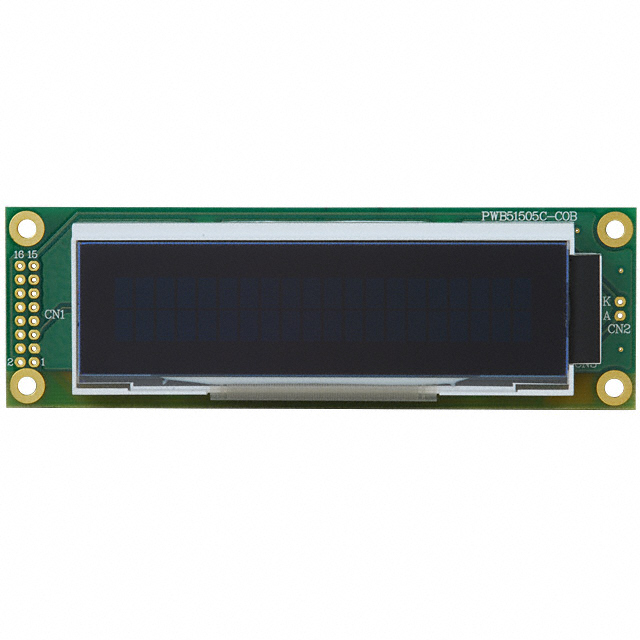

Kyocera International, Inc. C-51505NFQJ-LW-ALN is a character display module featuring a 20x2 character format with a 5x8 dot matrix per character. This transmissive STN-Super-Twisted Nematic LCD offers white LED backlighting for clear visibility. The module supports a parallel interface and operates within a -20°C to 70°C temperature range, with a supply voltage of 4.5V to 5.5V. Its dimensions are 116.00mm x 37.00mm x 15.60mm, with a viewing area of 83.00mm x 18.60mm. This component is suitable for applications in industrial control, medical equipment, and point-of-sale systems.
Additional Information
Series: C-51505RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transmissive |
| Backlight | LED - White |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Viewing Area | 83.00mm L x 18.60mm W |
| Character Size | 5.58mm H x 3.23mm W |
| Display Format | 20 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.63mm W x 0.68mm H |
| Outline L x W x H | 116.00mm x 37.00mm x 15.60mm |
| Text Color | White |
| Background Color | Black |
| Number of Characters | 40.0 |
