C-51505NFJ-SLW-APN
LCD MOD 40DIG 20X2 TRANSFLCT WHTManufacturer: Kyocera International, Inc.
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

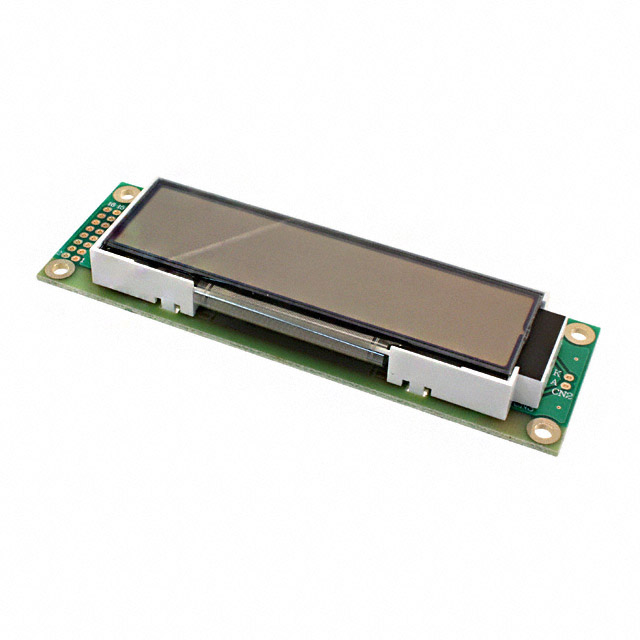

Kyocera International, Inc. C-51505NFJ-SLW-APN is a transflective character display module supporting a 20x2 character format with a 5x8 dot matrix per character. This FSTN (Film Super-Twisted Nematic) display features a white LED backlight and offers excellent readability in various lighting conditions due to its transflective nature. The module utilizes a parallel interface for data and control signals. Key specifications include a character capacity of 40, an operating temperature range of -20°C to 70°C, and a supply voltage range of 4.5V to 5.5V. Its physical dimensions are 116.00mm x 37.00mm x 15.60mm, with a viewing area of 83.00mm x 18.60mm. This component is commonly found in industrial control systems, point-of-sale terminals, and instrumentation applications.
Additional Information
Series: C-51505RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - White |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Viewing Area | 83.00mm L x 18.60mm W |
| Character Size | - |
| Display Format | 20 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | - |
| Outline L x W x H | 116.00mm x 37.00mm x 15.60mm |
| Text Color | Black |
| Background Color | White |
| Number of Characters | 40.0 |
